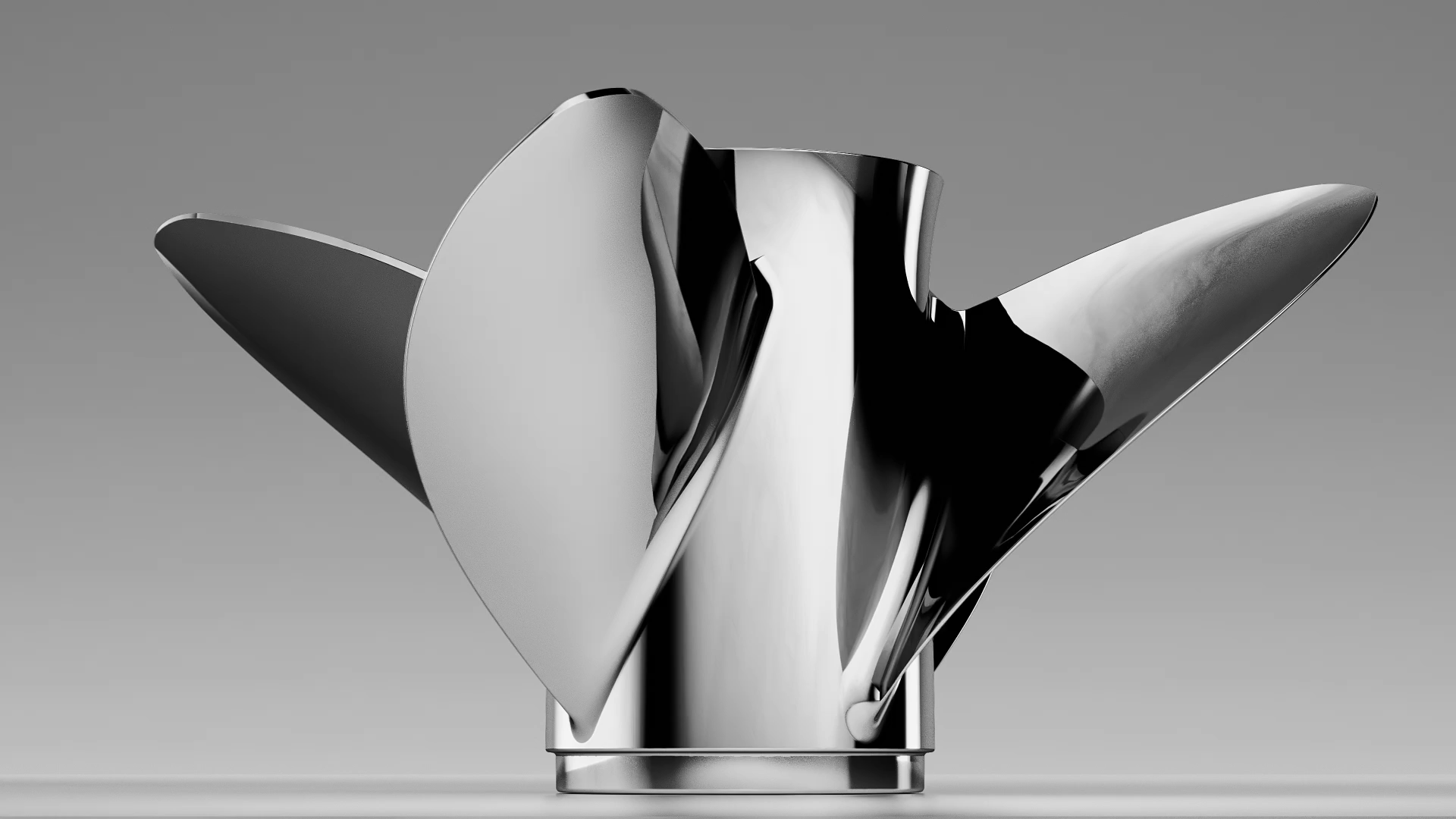

For V-bottom and cat owners looking to achieve maximum top speed, the Bravo I® Lab Finish allows for an increase of 2 inches of pitch, which equates to a 2 to 3 mph gain at WOT. Top-end rpm will increase by about 300, and it will spool up quicker than a standard finish Bravo I®. With the same barrel length as the Bravo LT, the Bravo I® Lab Finish propeller is designed for four-stroke outboards and sterndrive applications that will benefit from thinner blades.
ENGINE TYPE
STERNDRIVE
APPLICATION
CATAMARAN, SPORTS V-BOTTOM
SPEED
70-110 MPH
HP RANGE
up to 500HP outboard, up to 600HP sterndrive
BLADES
4
FINISH
LAB
DIAMETER
15.25"
PITCH RANGE
22" - 37"
VIEW PART NUMBERS
Bravo I Lab Finish.pdf
18.5 MBDOWNLOAD
DIAMETER
15.25"
PITCH RANGE
22" TO 37"
ROTATION
RH & LH
FINISH
LAB
VIEW PART NUMBERS
PRODUCT DETAILS
|
PART NUMBER |
PITCH |
DIAMETER |
ROTATION |
|---|---|---|---|
| 831909L65 | 22" | 15.25" | LH |
| 831910L65 | 22" | 15.25" | RH |
| 8M0073457 | 23" | 15.25" | LH |
| 8M0073456 | 23" | 15.25" | RH |
| 831911L65 | 24" | 15.25" | LH |
| 831912L65 | 24" | 15.25" | RH |
| 831911L45 | 25" | 15.25" | LH |
| 831912L45 | 25" | 15.25" | RH |
| 831913L65 | 26" | 15.25" | LH |
| 831914L65 | 26" | 15.25" | RH |
| 831913L45 | 27" | 15.25" | LH |
| 831914L45 | 27" | 15.25" | RH |
| 831915L65 | 28" | 15.25" | LH |
| 831916L65 | 28" | 15.25" | RH |
| 831915L45 | 29" | 15.25" | LH |
| 831916L45 | 29" | 15.25" | RH |
| 831917L65 | 30" | 15.25" | LH |
| 831918L65 | 30" | 15.25" | RH |
| 831917L45 | 31" | 15.25" | LH |
| 831918L45 | 31" | 15.25" | RH |
| 831919L65 | 32" | 15.25" | LH |
| 831920L65 | 32" | 15.25" | RH |
| 831919L45 | 33" | 15.25" | LH |
| 831920L45 | 33" | 15.25" | RH |
| 832121L65 | 34" | 15.25" | LH |
| 832122L65 | 34" | 15.25" | RH |
| 832121L45 | 35" | 15.25" | LH |
| 832122L45 | 35" | 15.25" | RH |
| 832123L65 | 36" | 15.25" | LH |
| 832124L65 | 36" | 15.25" | RH |
| 832123L45 | 37" | 15.25" | LH |
| 832124L45 | 37" | 15.25" | RH |
