4.6L V8
SUPERCHARGED
500R

THE NEW BENCHMARK

Experience elevated power and technology created exclusively for owners of the fastest luxury sport boats. Producing 500 supercharged horsepower, the Mercury Racing V8 500R introduces a host of new components in the powerhead, cooling system, midsection, gearcase and steering system, each engineered to harness the raw power produced by this engine and to meet the challenging demands of Wide Open performance boating.

500r engine
5oor rear
500r side
500r rear view
500r side view
500r rear view
500r white rear view

A word from
Mercury Racing

“THIS MOTOR OFFERS INCREDIBLE MID-RANGE PUNCH AND UNRELENTING AUTHORITY.”

Person image

Jeff Broman

Director, Mercury Racing Category

VIEW IN
AUGMENTED
REALITY

360° AR

scan qr code

qr code

See 500r in ar

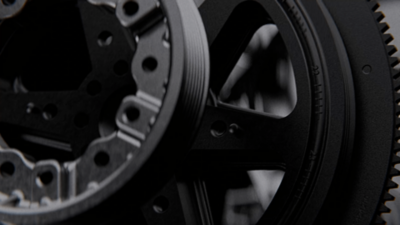

powerhead

Powerhead

500HP
PURE. MUSCLE.

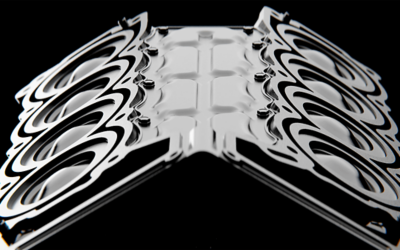

STOUT POWERHEAD

Built from the inside out for rugged performance. Our new 4.6L V8 powerhead features upgraded components support to a scaled-up power output and deliver reliability you can count on.

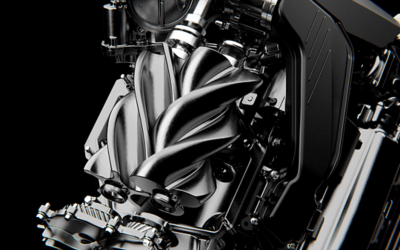

BIGGER BOOST

Our power prescription calls for a 26% increase in supercharger boost pressure. Air flow is optimized with a larger intake attenuator and a new 92mm throttle body.

HUMIDITY COMPENSATION TECHNOLOGY

More power in every environment. For the first time in any marine engine, a new sensor measures the humidity level of the intake airflow to maintain the most aggressive calibration and optimize performance under virtually all conditions.

Stout powerhead

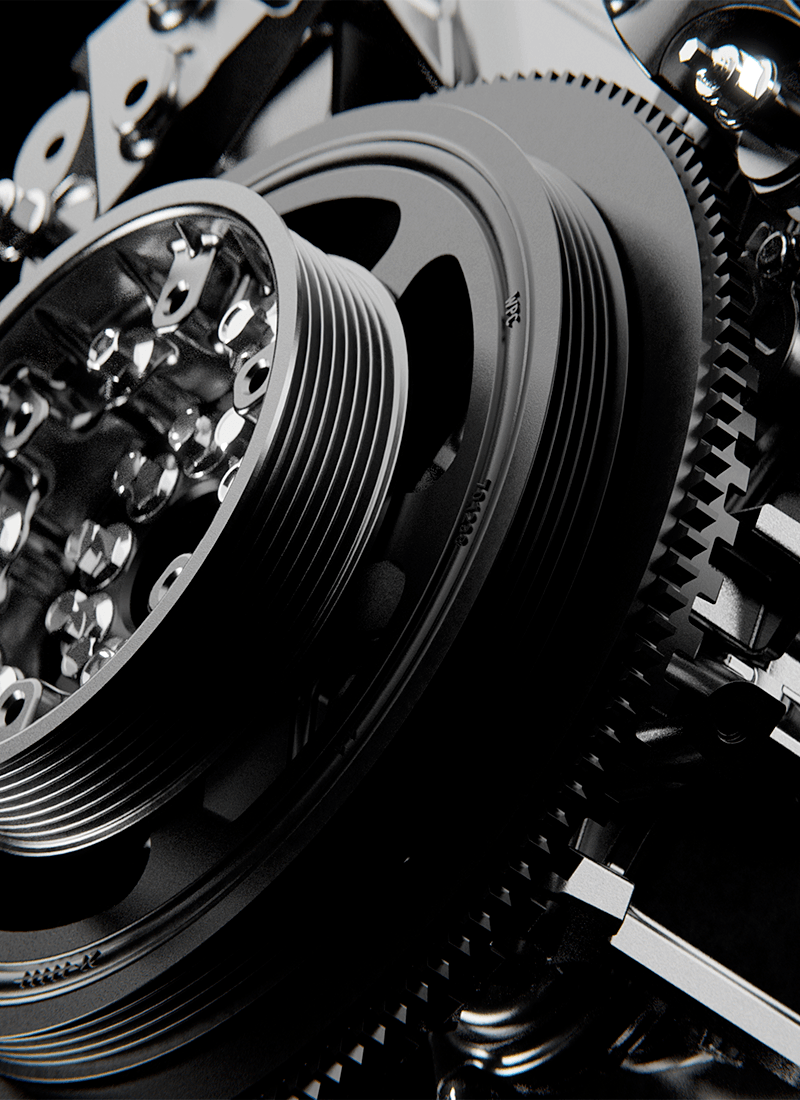

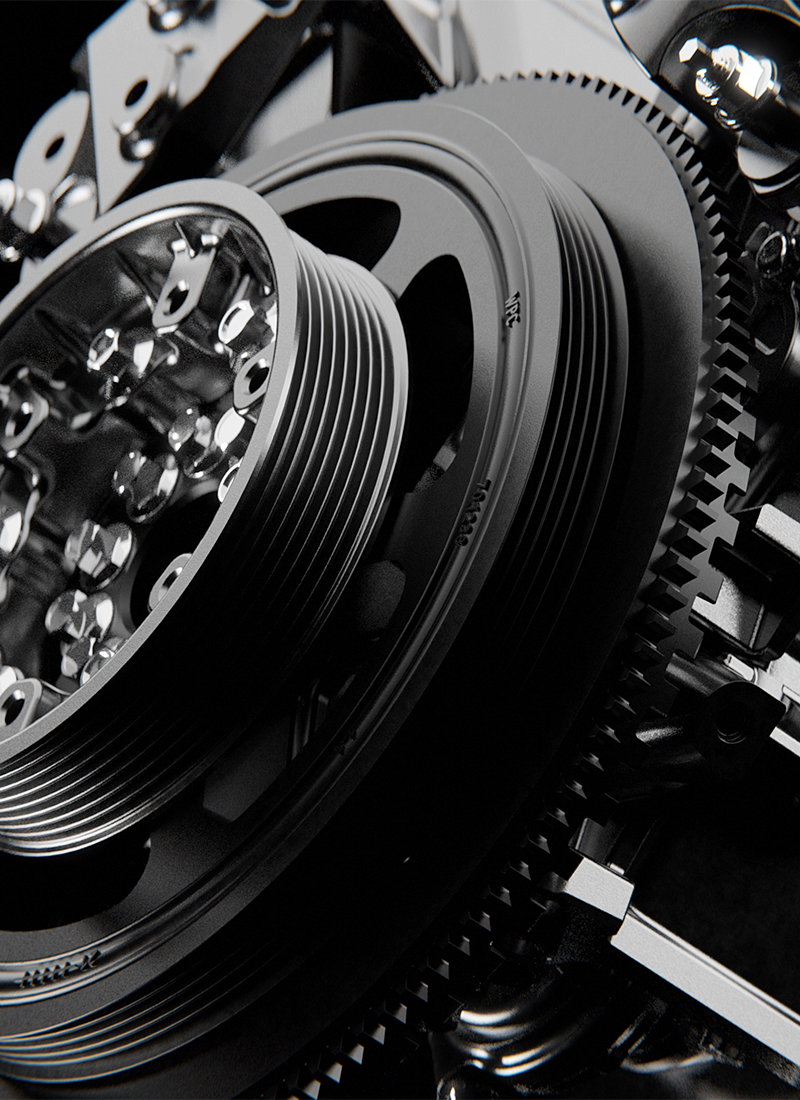

Rev it up

A new low-inertia flywheel allows the engine RPM to climb faster for improved acceleration.

Stout Powerhead

Forged Strength

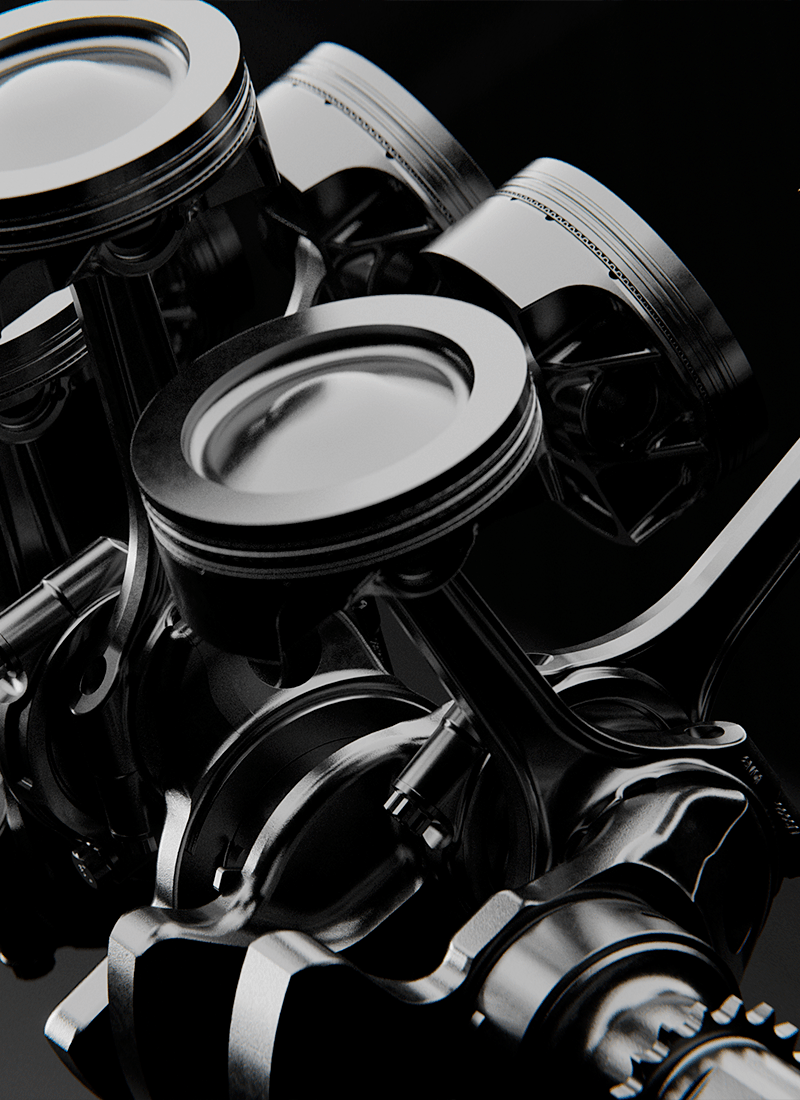

Connecting rods, rod bearings and pistons are strengthened to handle increased combustion pressure and a higher 6600 RPM redline.

Stout powerhead

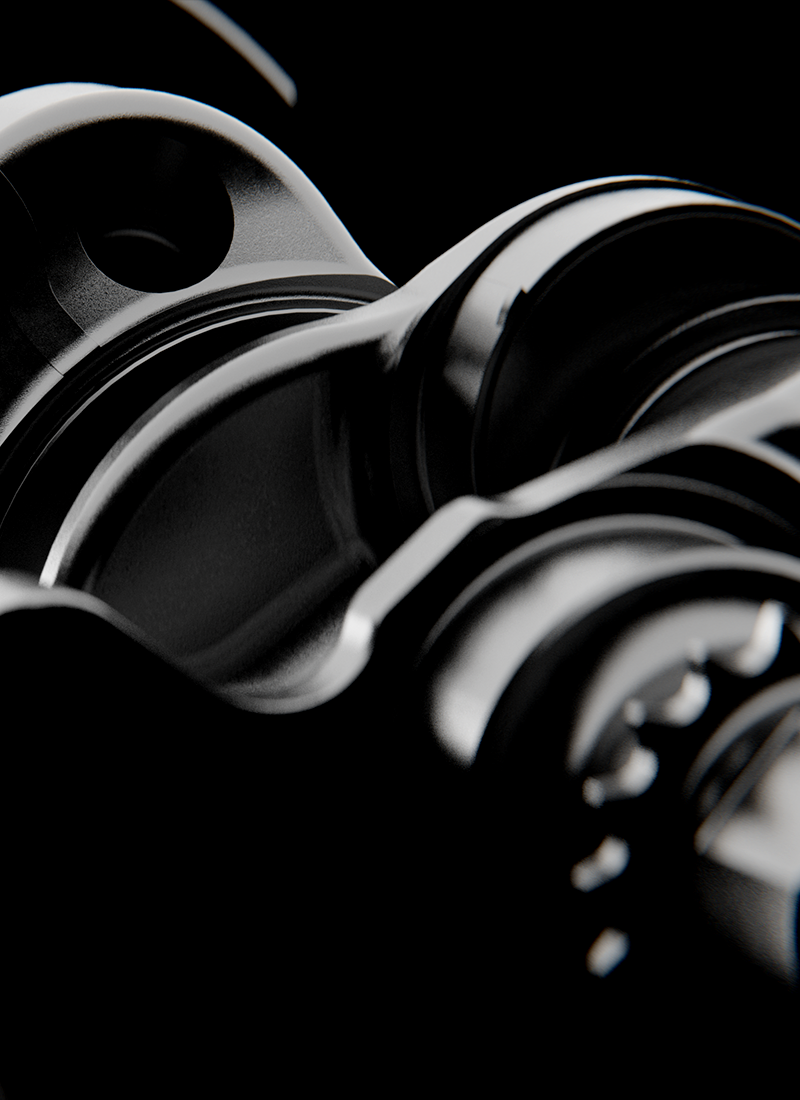

Robust Crankshaft

A stout new crankshaft specific to the 500R model rides in 230-degree groove main bearings for improved oiling and features robust 1-inch driveshaft splines.

1/ 3
stout powerhead
Forged Strength
Robust Crankshaft
1/
1/

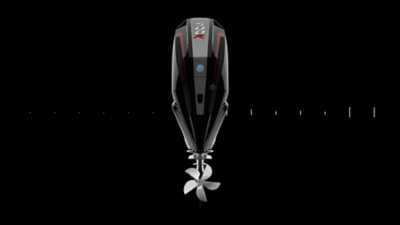

FEEL THE POWER.

The dual muffler system of Advanced Sound Control offers the option of a deep sport tone with a stirring growl on start-up.

engine 500r

Hold Spacebar

Keep Holding...

500r-midsection

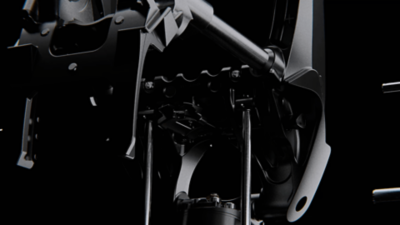

MIDSECTION

STIFFER.
STRONGER.

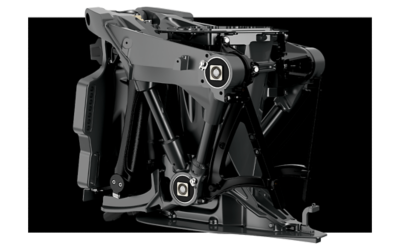

ADVANCED RACING CORE (ARC) MIDSECTION

The new Advanced Racing Core (ARC) midsection is engineered to upgrade durability and performance.

ARC Label
Core Strength

CORE STRENGTH

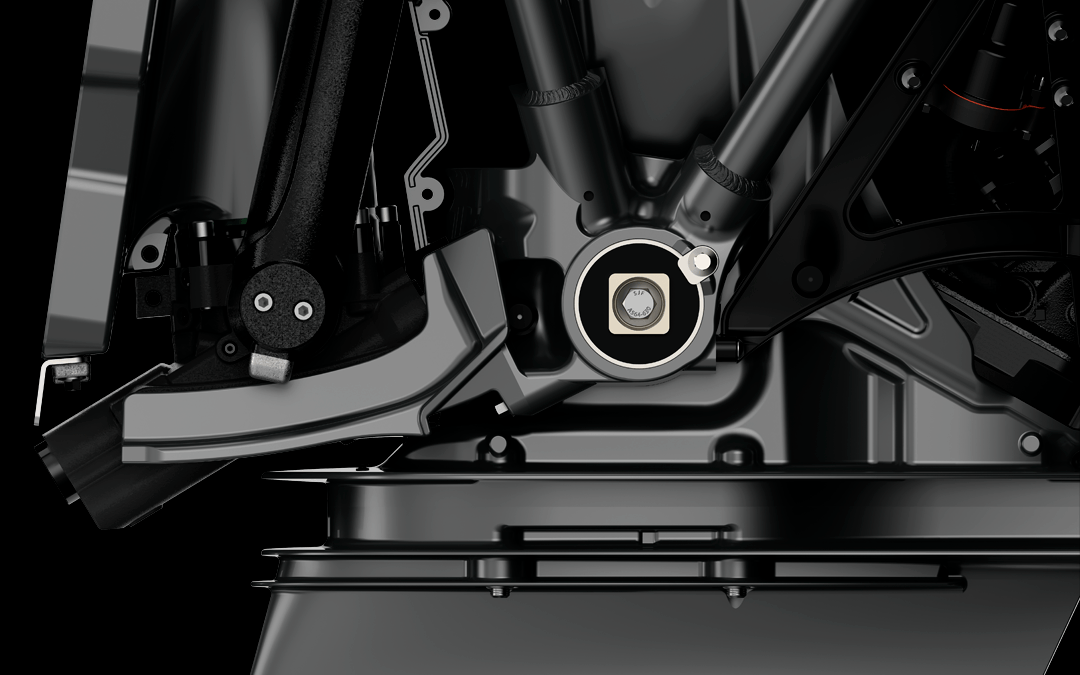

Mercury Racing has engineered the Advanced Racing Core (ARC) midsection to compliment the extreme thrust and high-speed capability of the 500R outboard. This is the strongest, stiffest and most-durable midsection ever created by Mercury Racing, and it is exclusive to the 500R outboard.

TRIMMED TO PERFECTION

Precise drive trim control is critical to realizing the high-speed potential of any performance boat. Mercury Racing leverages decades of experience in the heat of competition to engineer an upgraded trim and steering system for the 500R outboard that delivers unmatched precision.

Trimmed to perfection
1/

Core Strength

Rigid Where It Counts

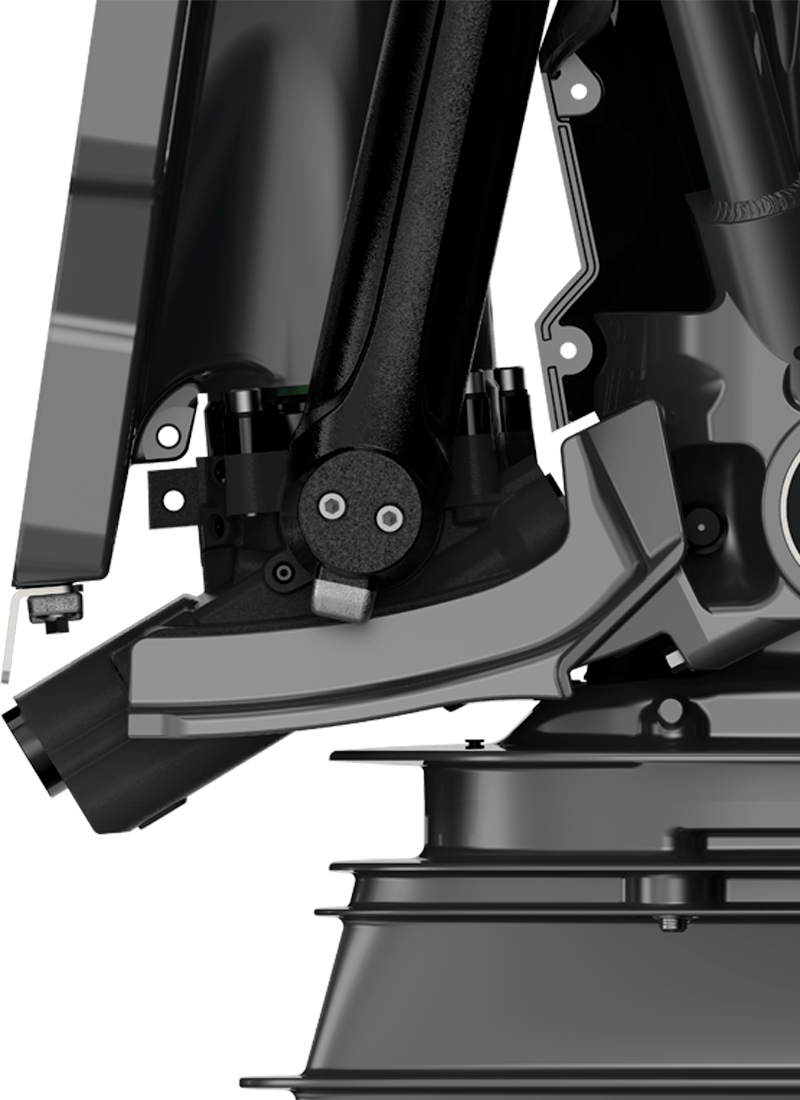

The transom plate is redesigned to be stronger. Precision-fitted heavy-duty guide plates and stiffened engine mounts are tuned to stabilize the engine for enhanced high-speed handling.

Core Strength

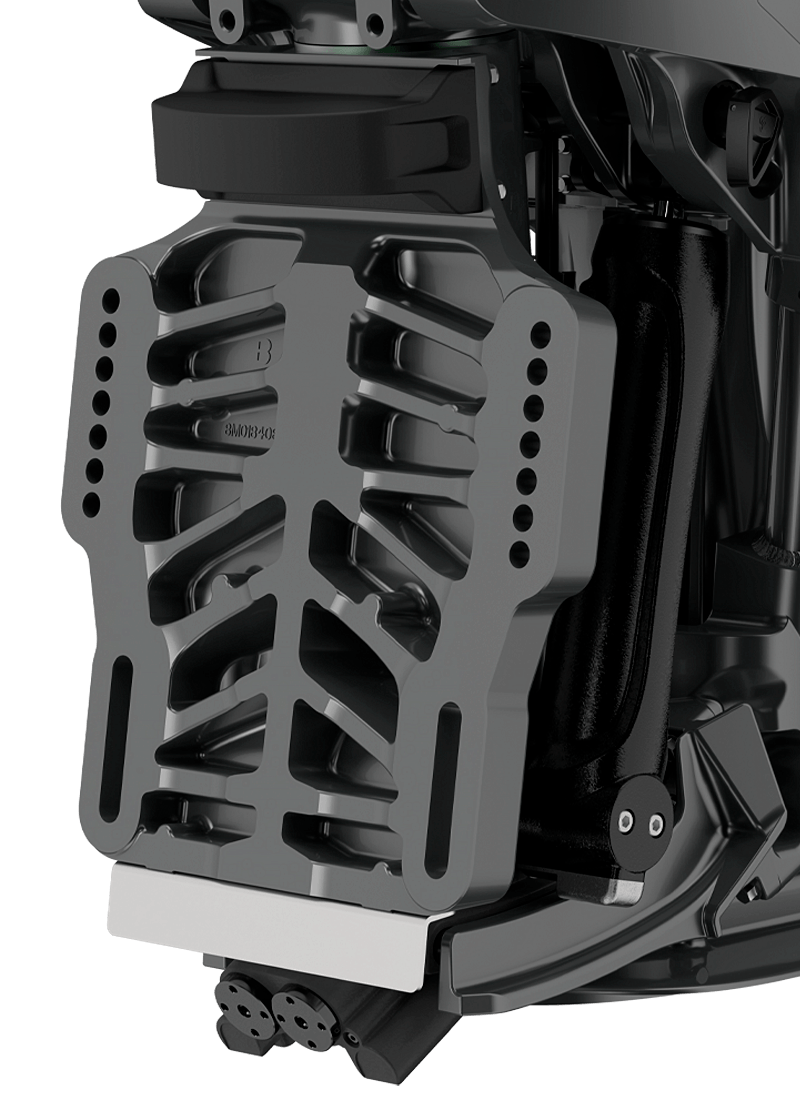

Precise Adjustments

Seven transom plate mounting holes accommodate three inches of vertical adjustment, twice the adjustment range of the previous design.

1/ 2
Rigid
Precise adjustments

Trim System

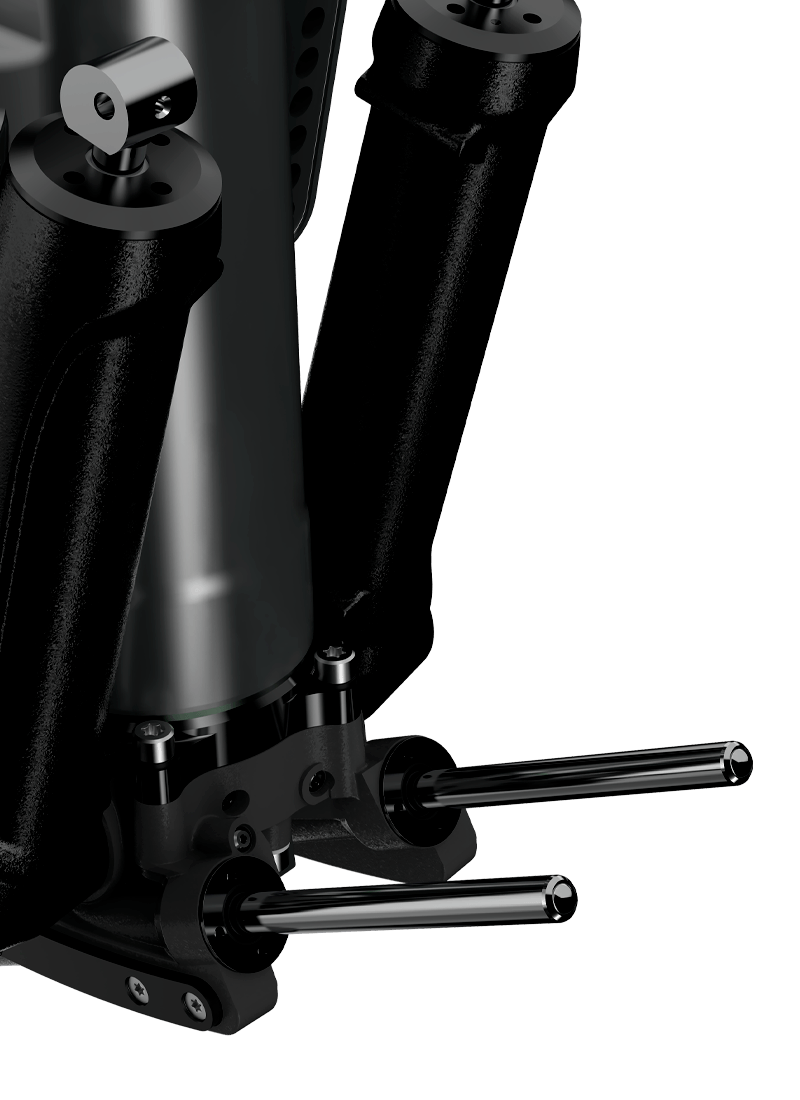

Booster Rams

The trim system features two main hydraulic rams plus two booster rams for added trim authority under full load.

Trim System

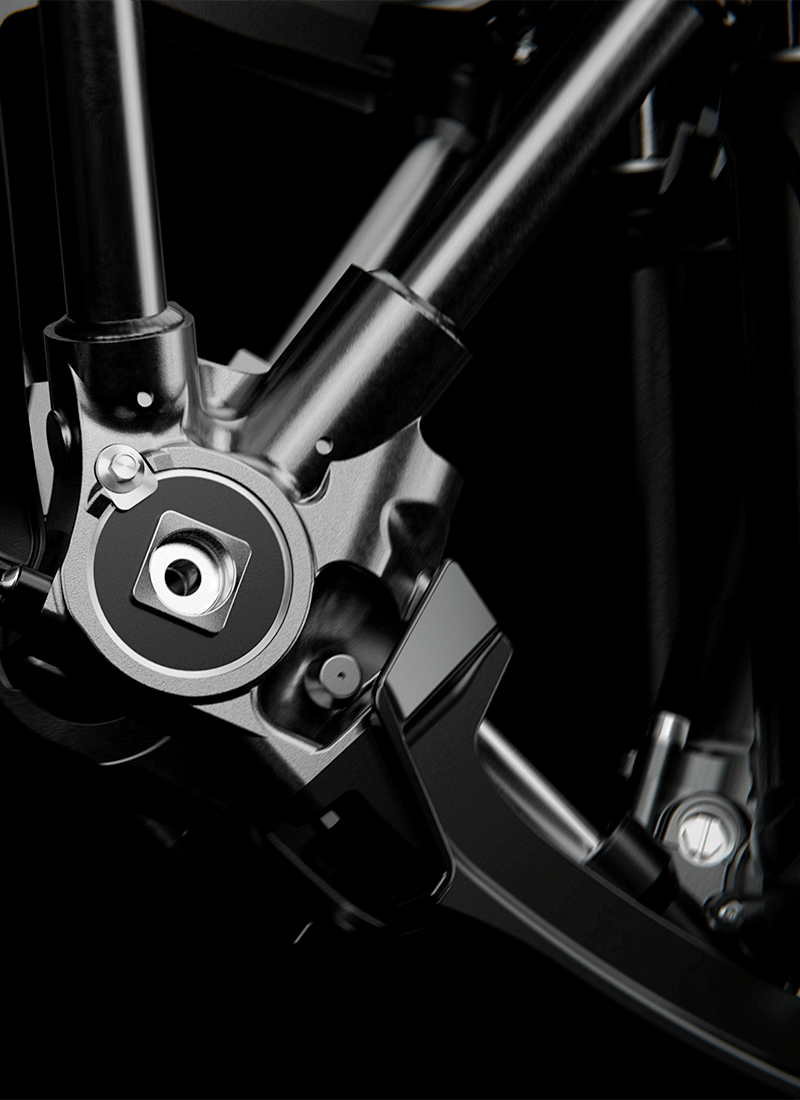

Speed Sensitive

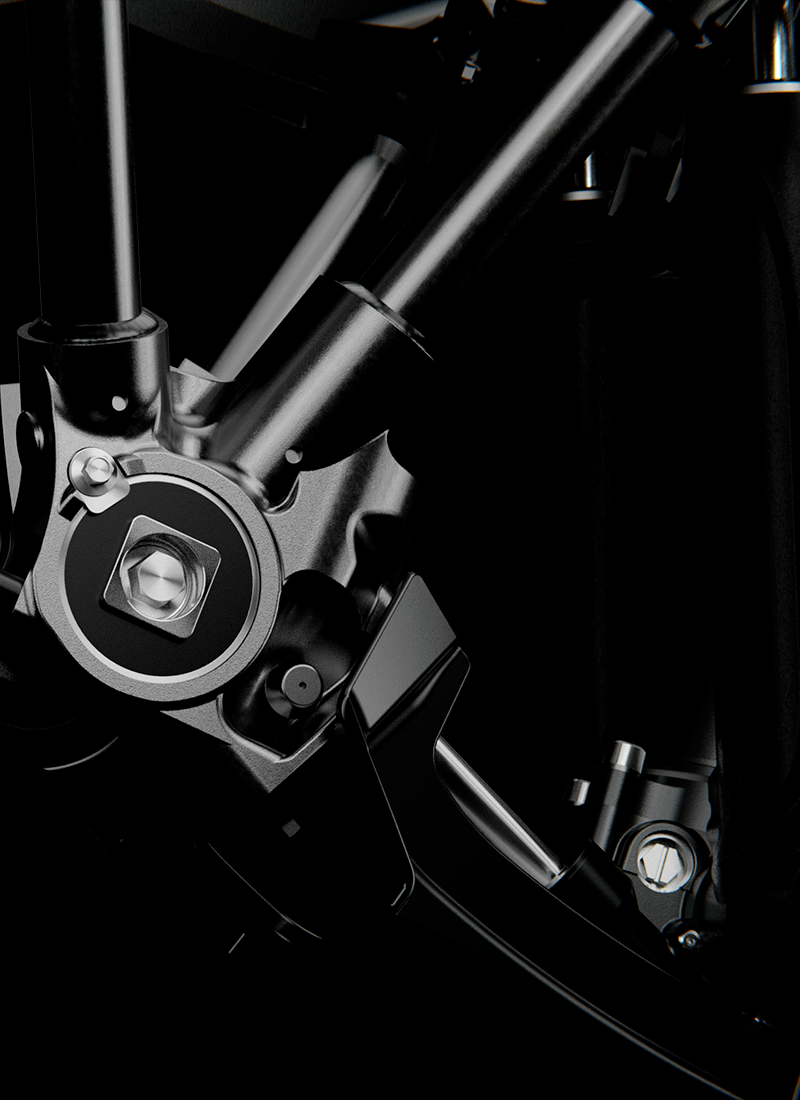

Slower trim adjustment speed permits very fine resolution for more precise trim adjustment at high speeds.

Trim System

Stronger steering

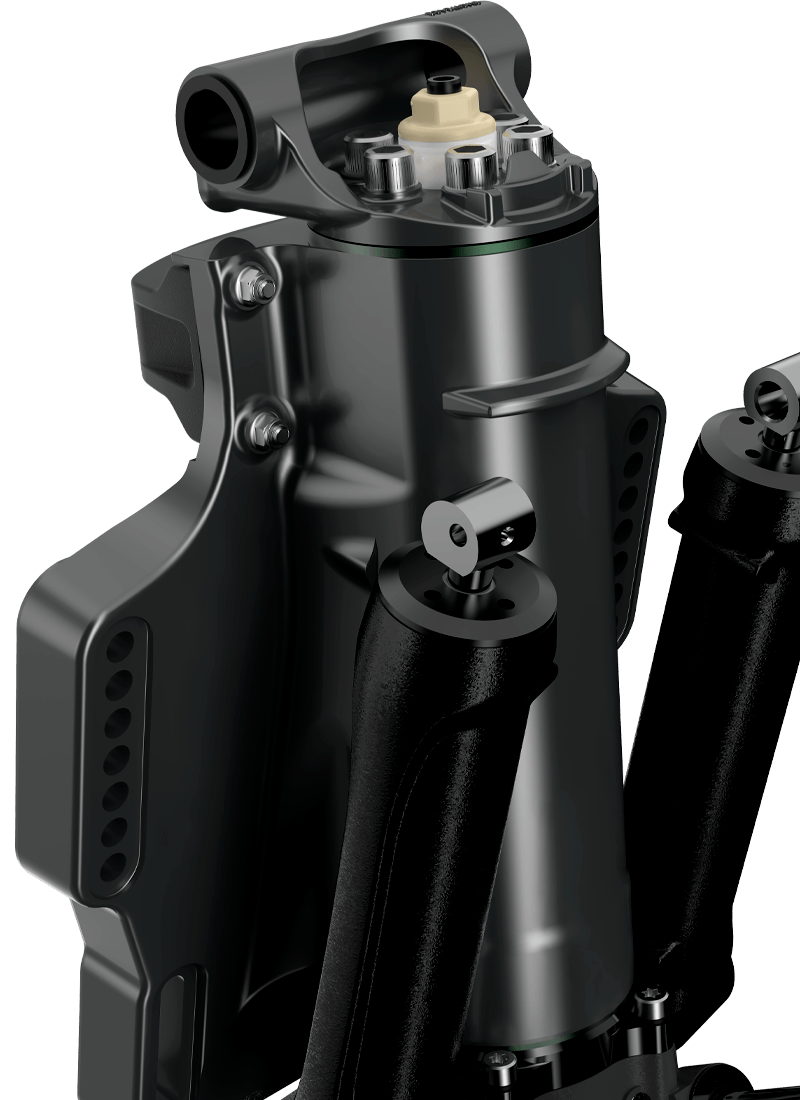

Upgraded steering components and 20 percent greater steering cylinder force are designed to better manage engine torque. Optional integral tie-bar bracket offers rock-solid precision steering.

1/ 3
Boost rams
Speed engine
Stronger Steering

Gearcase

Speed.
Rated.

MERCURY RACING R-DRIVE

The new level of outboard power demands all-new gear case options. Introducing the exclusive Mercury Racing R-Drive, available in R-Drive and R-Drive Sport versions, this high-performance gear case is designed specifically for the speed and power of the 500R outboard in submerged, semi-surfacing and full surfacing applications.

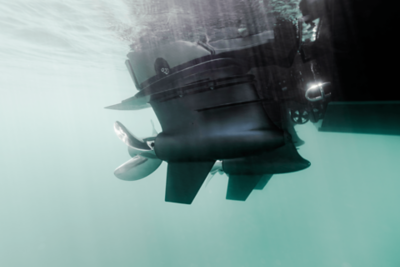

500r havasu

DESIGNED FOR
HIGH SPEED

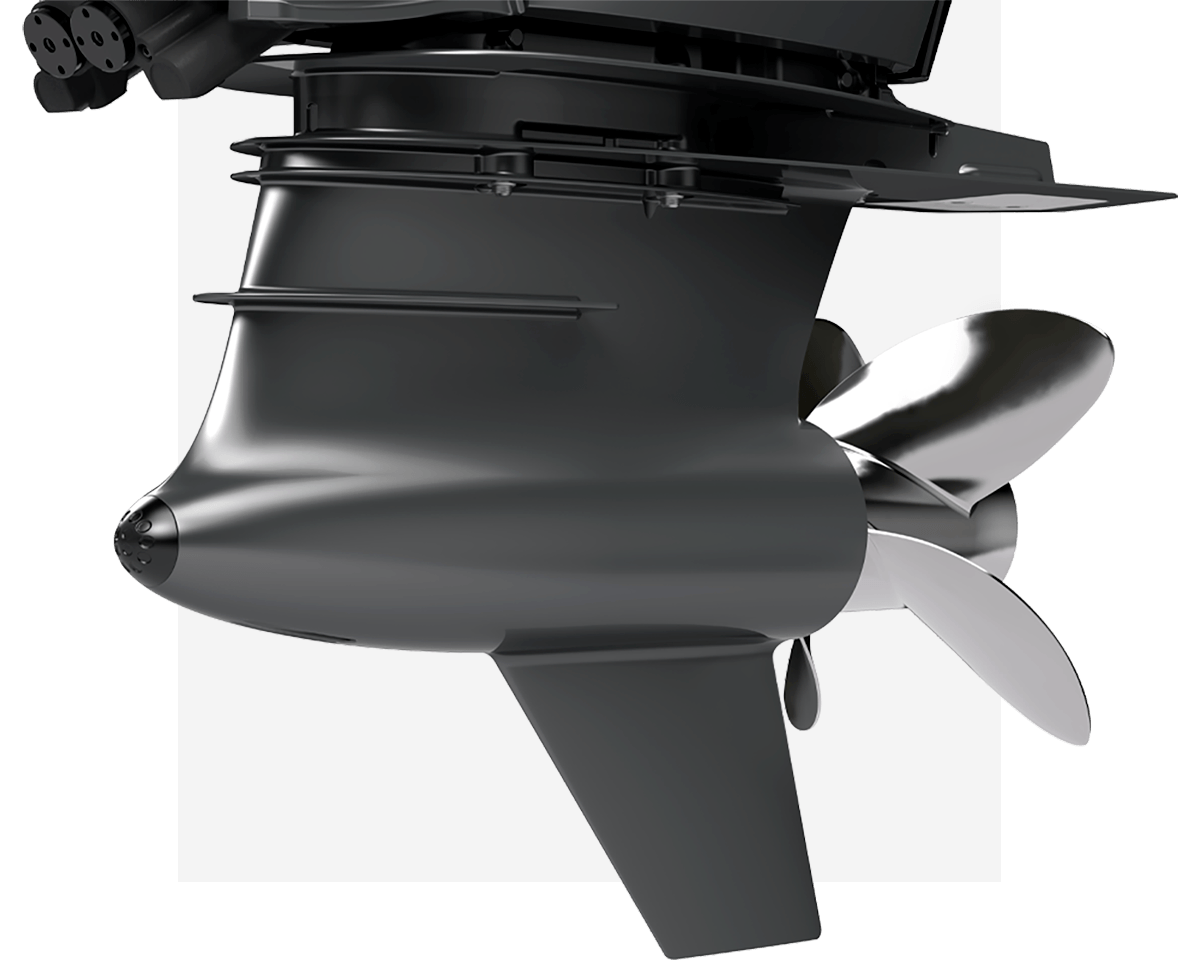

The Shape of speed

A crescent leading edge and long aspect 5.9-inch torpedo are hydrodynamically tuned for high speeds in any application. Equipped with 1.60:1 gear ratio and designed to turn propellers up to 17 inches in diameter.

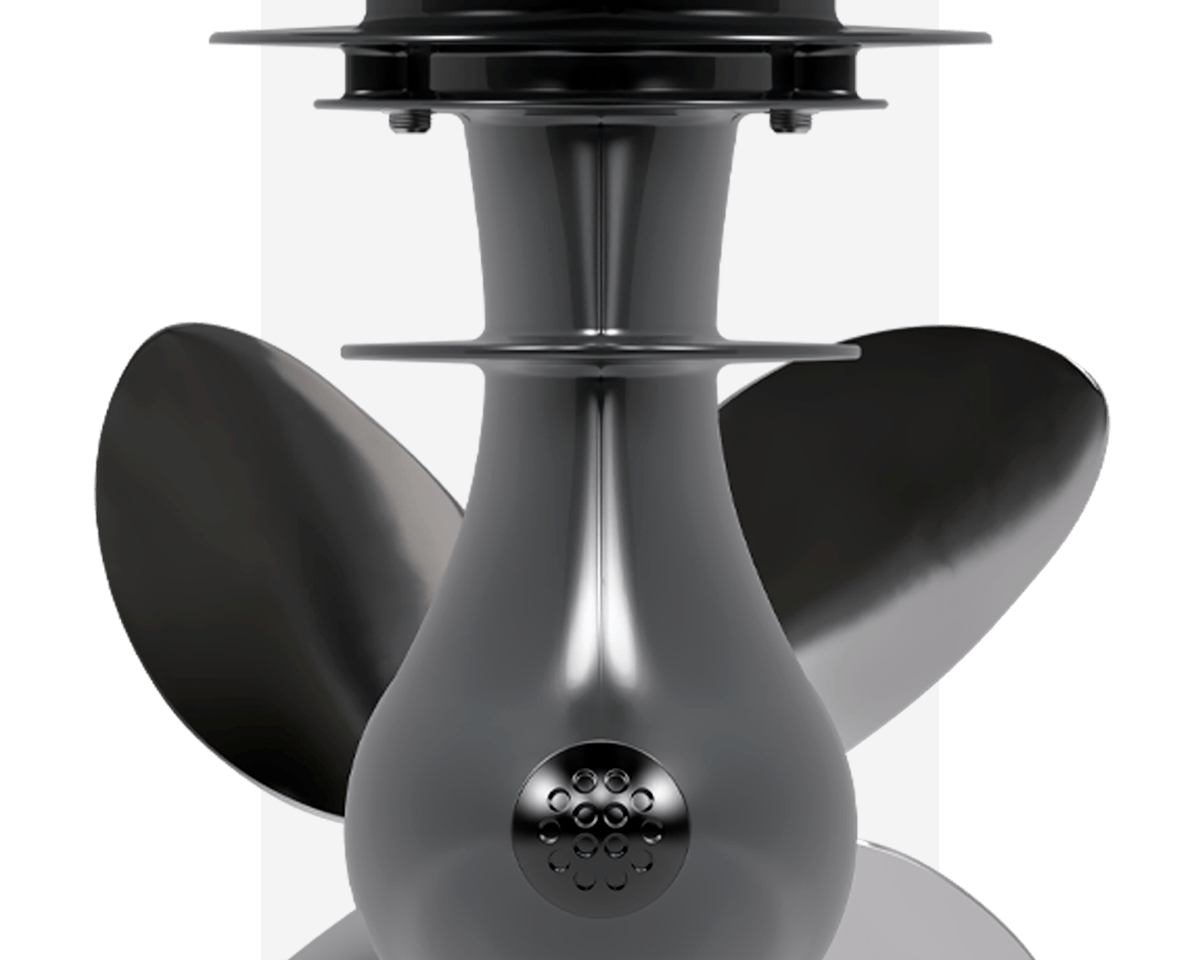

Reduced Drag

A new intermediate spray plate reduces drag in submerged and transition applications.

Optimize Flow

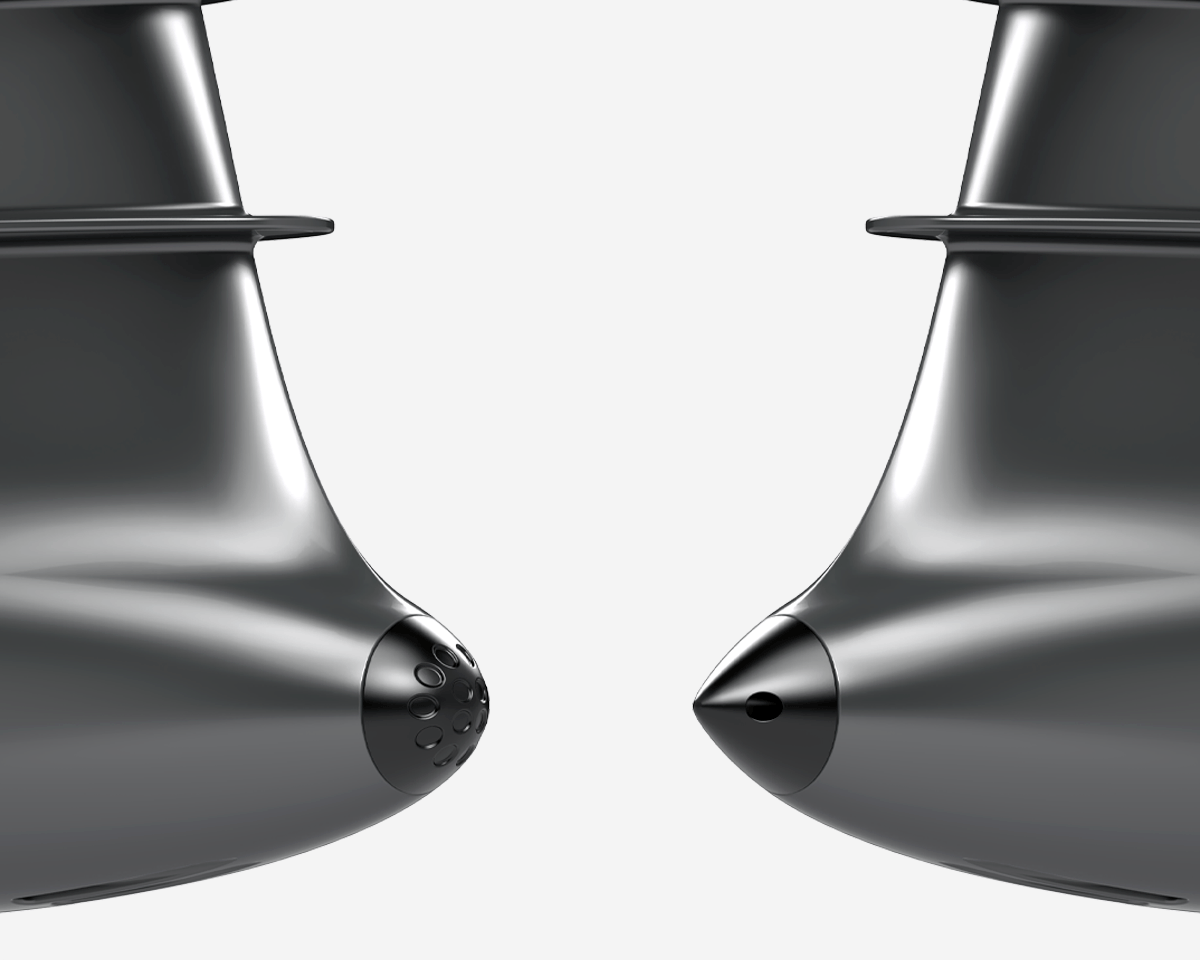

Low water pickups plus a new adjustable nose cap inlet system optimize water flow for submerged, transition and high-speed surfacing applications.

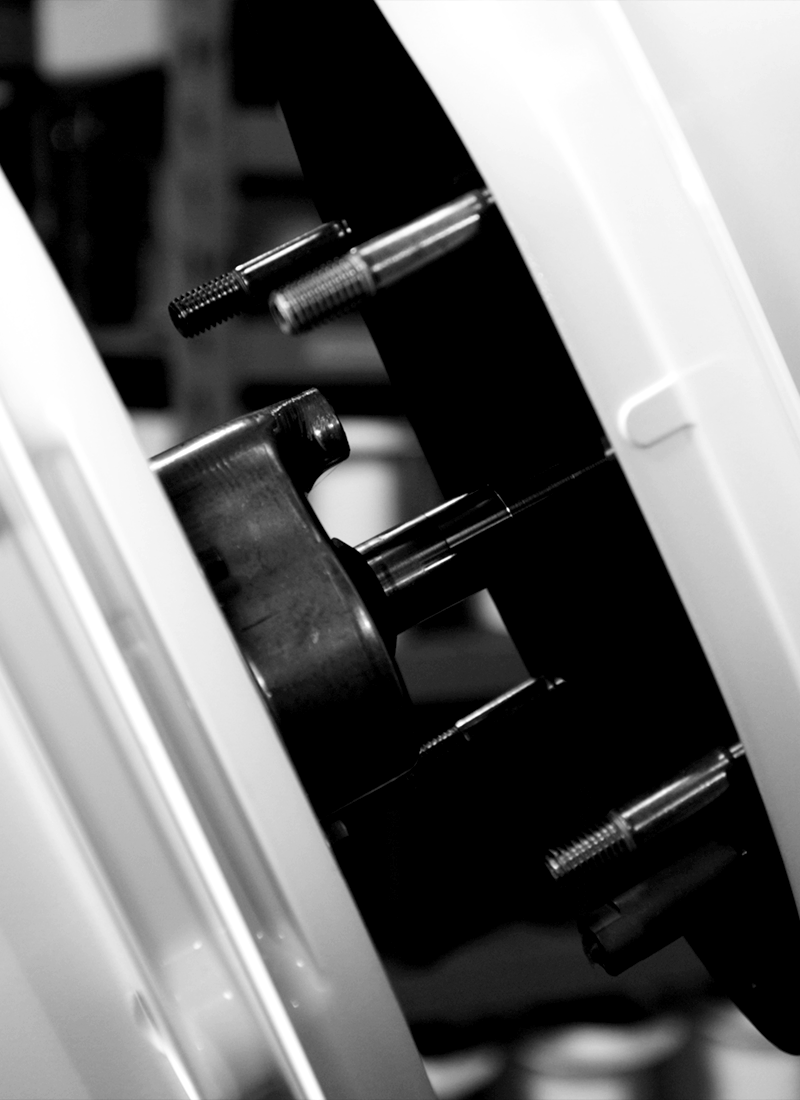

Pumped Up

To support a generous flow of cooling water to the powerhead water pump capacity is increased by 57 percent.

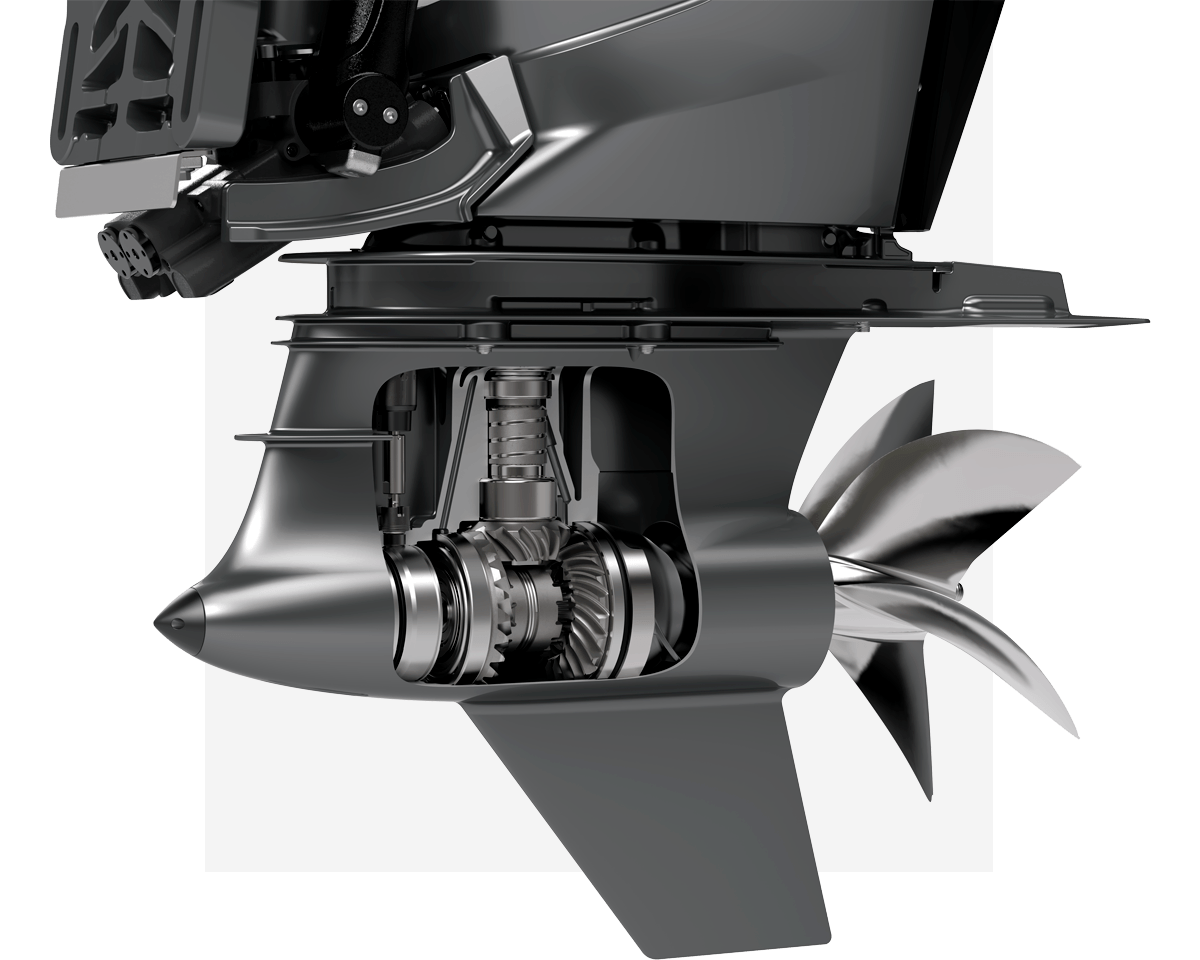

Stronger Inside

A rugged new 1-inch diameter driveshaft and 1.5-inch diameter propshaft are designed to handle the torque and thrust of 500 horsepower.

1/ 5
shape of speed
spray plate
optimized flow
Water Pump
stronger inside

R-DRIVE

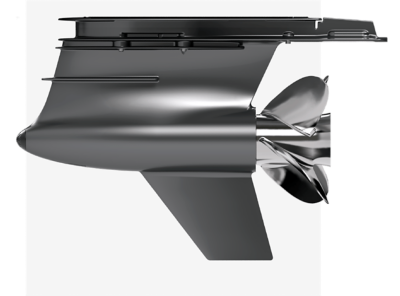

The R-Drive gearcase features a standard skeg length with a very efficient parabolic cross-section shape with left- or right-hand camber to balance steering force with standard and counter rotation props. Designed to perform in submerged and transition applications on boats capable of speeds between 85 and 100mph.

500r-drive
500r-sport

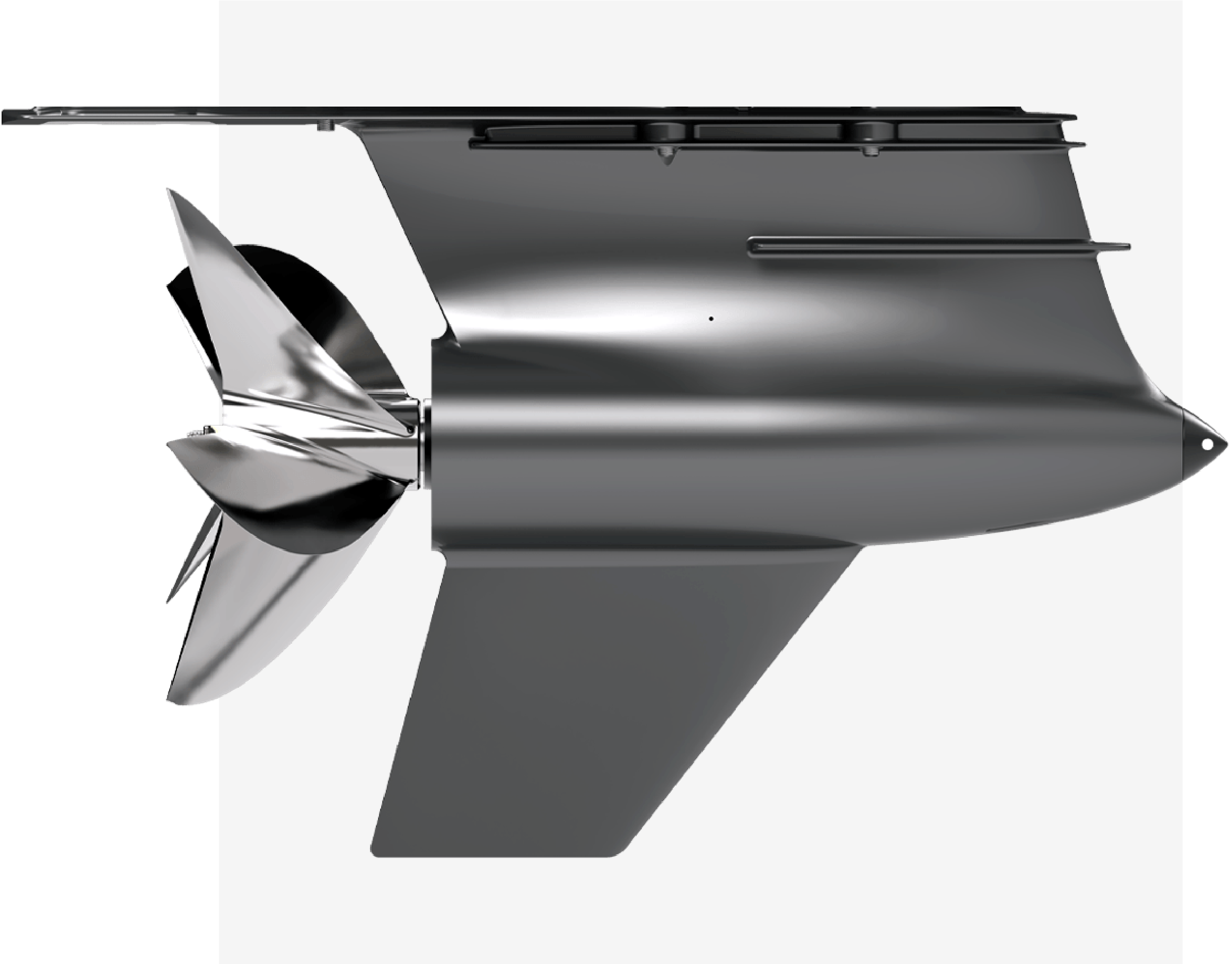

R-DRIVE SPORT

The R-Drive Sport is optimized for surfacing applications at speeds beyond 100 mph. Its longer skeg maintains steering control while operating fully surfaced at the high mounting positions desirable for many of the fastest hulls.

1/

R-Drive Sport

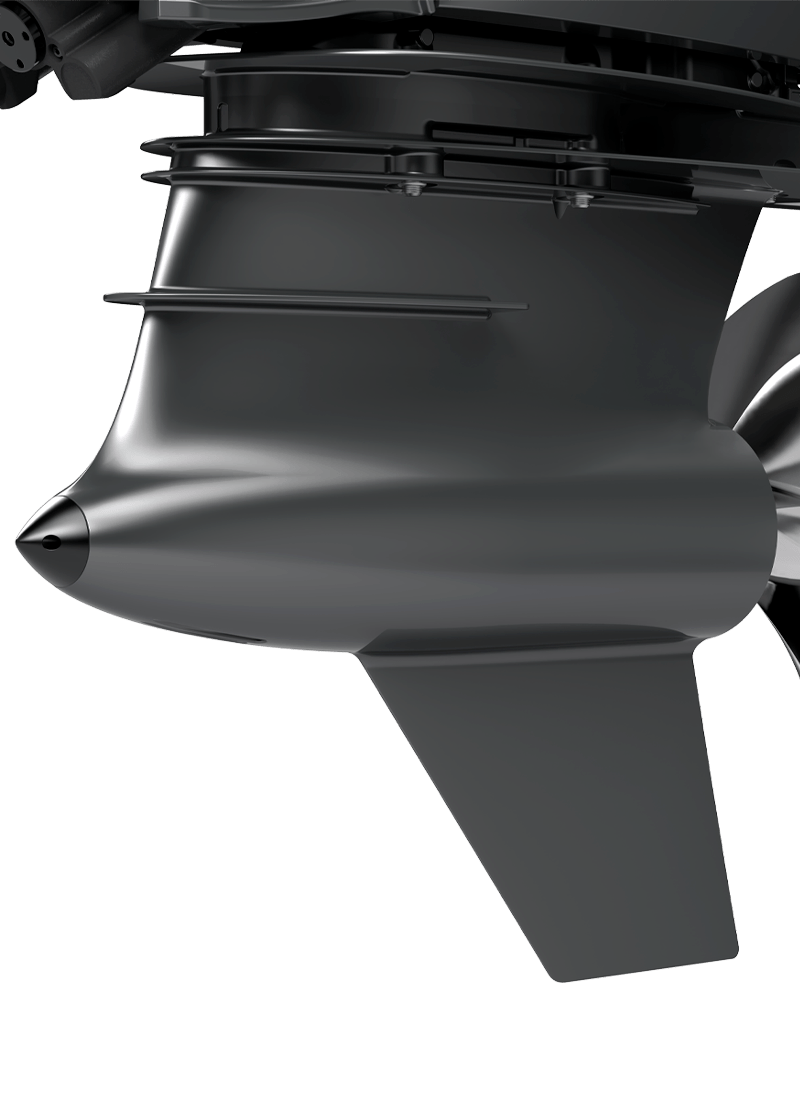

Wedge Skeg

The skeg features a wedge shape from leading edge to trailing edge and is available with no camber or with a right-hand camber for single-engine boats.

R-Drive Sport

Wedge Skeg

The skeg features a wedge shape from leading edge to trailing edge and is available with no camber or with a right-hand camber for single-engine boats.

1/ 2
500r Wedge

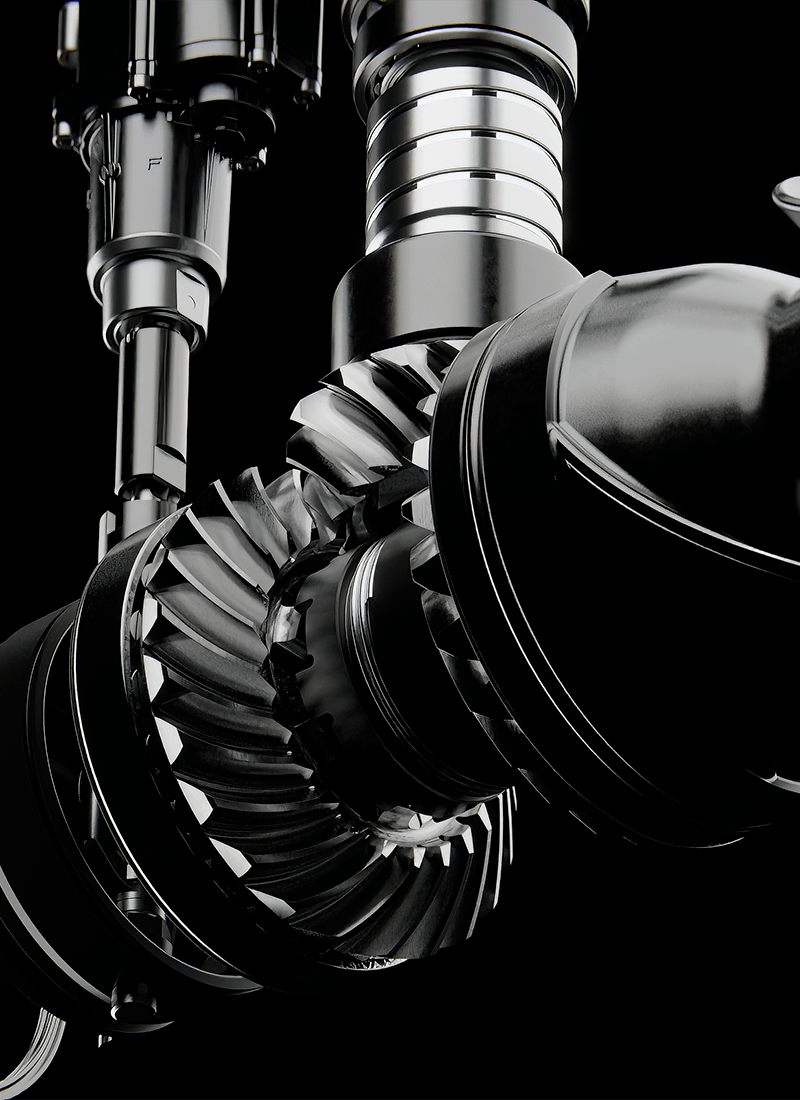

Aerospace Stainless
View al Specifications

FACTS & FIGURES

FULL THROTTLE RPM

6000
6600

RATED HP

500

CYLINDERS

V8

DISPLACEMENT

4.6L

PRODUCT DETAILS

HORSEPOWER (HP/KW) 500 / 372
WOT RPM 6000-6600
ENGINE TYPE V8 (64 Degree) with 32-Valve Dual Overhead Cam (DOHC)
DISPLACEMENT (LITER/CID) 4.6 / 281
INDUCTION SYSTEM Supercharged with Charge Air Cooling and Electronic Boost Control
FUEL REQUIREMENTS Unleaded Regular 89 Octane Minimum (R+M/2) or 95 RON
OIL REQUIREMENT MRX 10W-30 or Mercury 10W-30 Full Synthetic
CHARGING (AMP/WATT) 115 / 1449
STEERING Hydraulic or JPO Electric
THROTTLE & SHIFT Digital Throttle & Shift (DTS)
MIDSECTION Advanced Racing Core (ARC)
INTEGRATED REAR TIE BAR BRACKET Available
SHAFT LENGTHS (INCH) 20, 25, 30, & 35
GEARCASE R-Drive, R-Drive Sport
GEARCASE RATIO 1.60:1
DRY WEIGHT (LB/KG) 726lbs
WARRANTY 3-Year Limited
paint loop

PICK YOUR COLOR.

TWO FACTORY FINISH CHOICES PLUS A READY-TO-PAINT OPTION READY FOR YOUR CUSTOM APPLICATION.

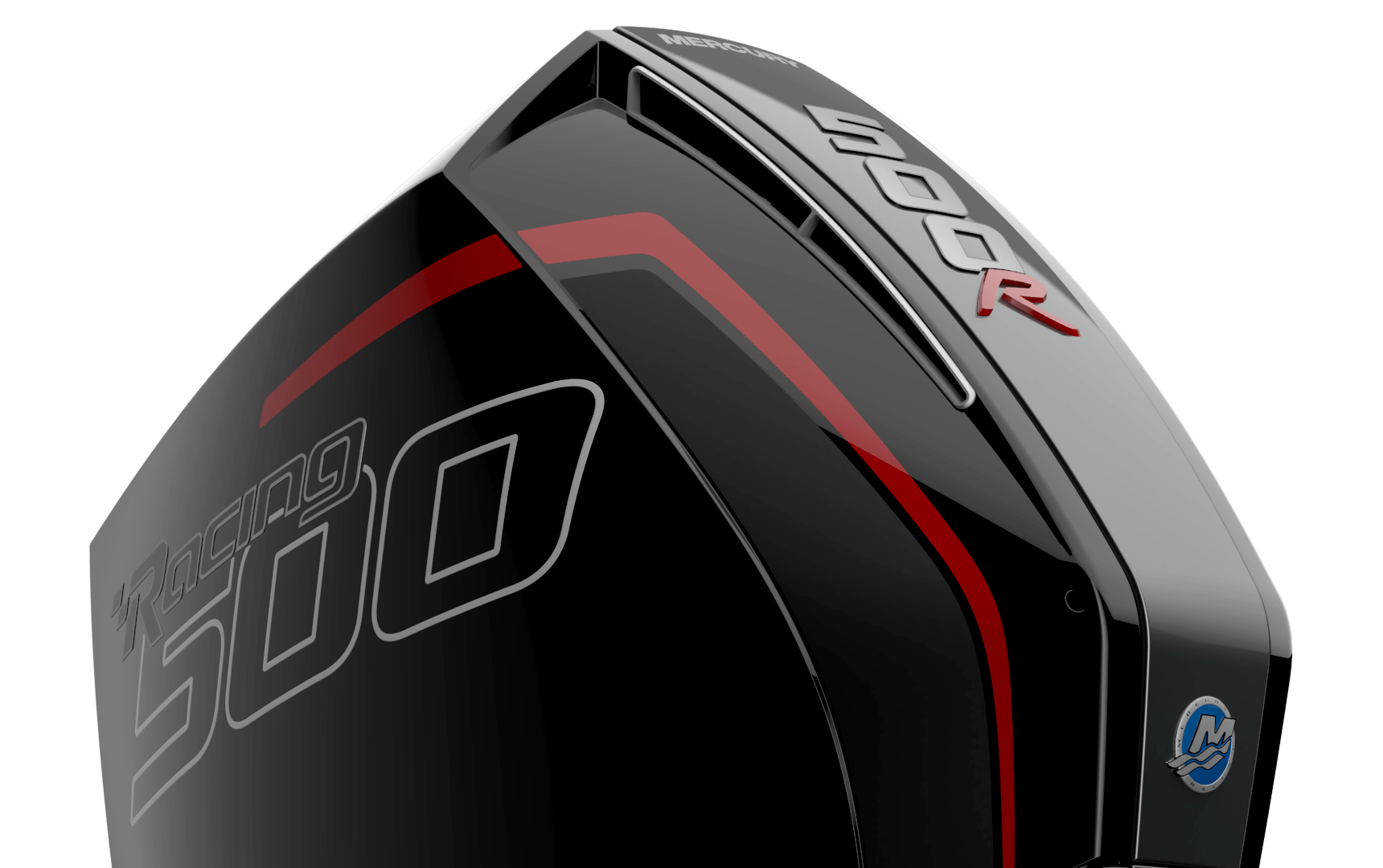

Phantom Black

Phantom Black

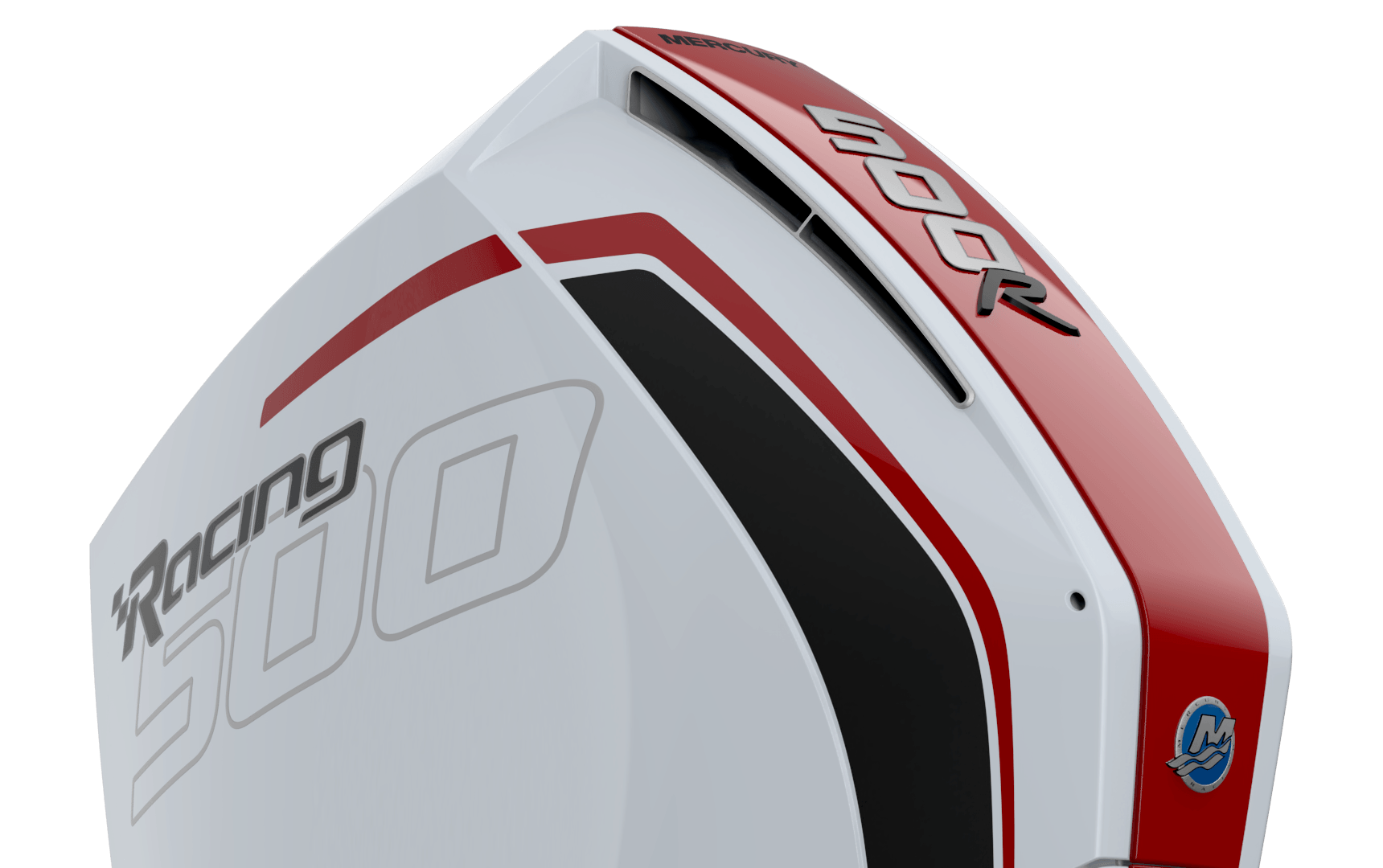

Cold - fusion white

cold fusion white

DIGITAL THROTTLE & SHIFT (DTS)

The precision of Digital Throttle and Shift (DTS) with available Mercury Racing Digital Zero Effort controls eliminates cable maintenance and delivers smooth shifting with instant throttle response.

ADAPTIVE SPEED CONTROL

Adaptive Speed Control maintains engine RPM as load changes due to sea conditions or turning maneuvers to maintain boat authority with less control input.

SMARTCRAFT TECHNOLOGIES

The 500R model supports the full suite of Mercury SmartCraft technologies, including the Engine Guardian monitor system. Stream engine and performance data to a Mercury VesselView multi-function display or to many other multi-function displays.

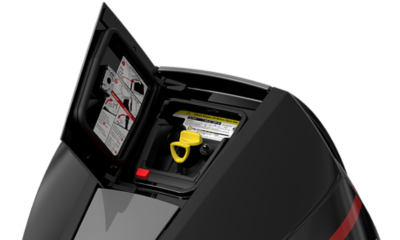

TOP COWL SERVICE DOOR

Pop open the industry-exclusive Top Cowl Service Door for easy access to the oil dipstick and fill without removing the cowl.
