Flex Some Muscle

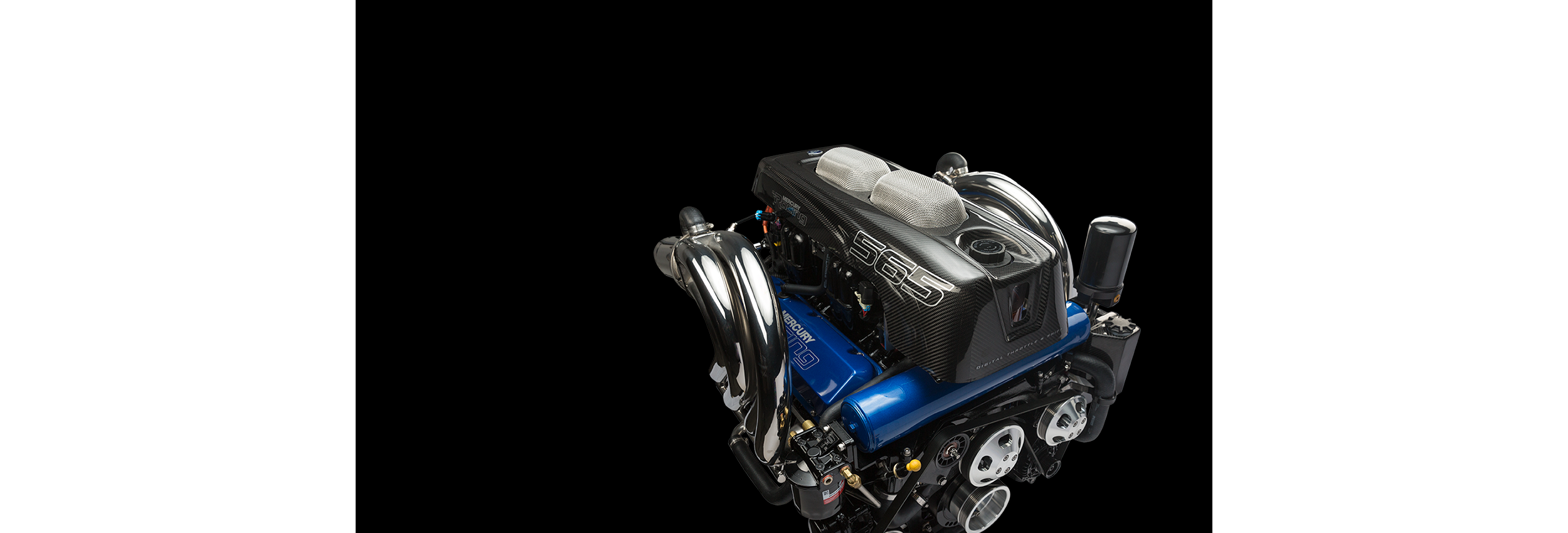

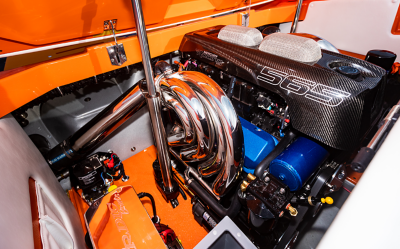

The 565 sterndrive combines the proven performance of big block power with the creature comforts of digital throttle and shift. A stroked, 8.7 liter cylinder block combined with high-performance cylinder heads, multiport fuel injection and twin electronic throttle bodies results in a whopping 565 horsepower that’s sure to blow your hair back. This power comes from 89 posted octane fuel; making this naturally aspirated powerhouse a natural for high performance vee bottoms and catamarans as well as sport cruisers.

565 motor

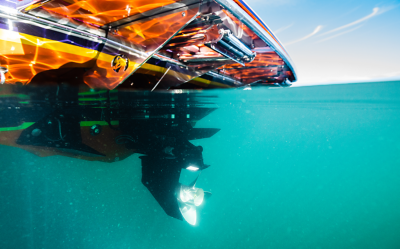

565 propeller

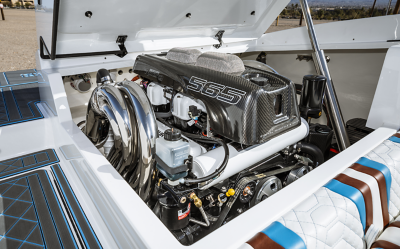

565 flex engine
565 boat
flex engine

Naturally
Aspirated

Specs

specs background
view full specifications

Facts and Figures

RATED HP AT TRANSOM

565

FULL THROTTLE RPM

5000-5400

DISPLACEMENT (L)

8.7 L

COMPRESSION RATIO

8.7:1

PRODUCT DETAILS

CYLINDERS / ENGINE CONFIGURATION V8
FUEL REQUIREMENT 89 Octane Minimum (R + M)/2
FUEL SYSTEM Sequential Fuel Injection
GEAR RATIO 1.35:1, 1.50:1
WARRANTY 2-Year Limited For Recreational Boating
BORE & STROKE 4.466 x 4.25 IN/113 x 108 MM
ALTERNATOR (AMP) 90 AMP
CONTROLLER 1 X PCM; 1 X TCM
DRIVE UNIT Bravo One XR, Bravo One XR Sport, Bravo One XR Sport Master, (Std. Or Short), (Integrated Transom System Optional)
LENGTH (IN) - FROM BACK OF BLOCK 34.2 IN
WIDTH (IN) 33.8 IN
HEIGHT (IN) 26.9 IN (From crankshaft center)
WEIGHT (LBS) 1201 LBS

Compatible Drives

Drives

Bravo One XR

Intended for single, twin and triple applications with engines up to600hp in boats capable of up to 85 mph top speed. The Bravo OneXR® is designed for high-performance applications, with dual water pickups, heavy-duty U-joints, a heavy-duty stainless steel prop shaft, billet aluminum bearing carrier, upgraded upper thrust bearings and net forged straight cut bevel gears for enhanced strength.

Discover
Bravo one XR
sport master engine

Drives

Bravo One XR Sport Master

The surfacing Sport Master gearcase offers heavy-duty durability for boats that travel in excess of 85 mph, with four-slot low water pick-ups and a crescent leading-edge design that reduces drag as much as possible to maximize efficiency and speed. The one-piece gearcase housing and skeg are precision CNC machined for perfect symmetry that results in improved handling at higher speeds.

Discover

Drives

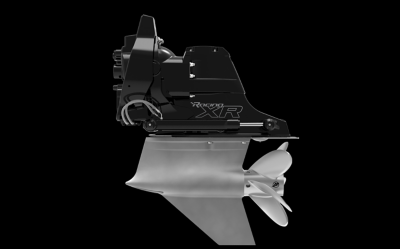

Bravo One XR Sport Master Short

The same super hydrodynamic design as the Sport Master, with a two-inch shorter length. This permits lowering the transom X dimension by two inches, and mounting the engine two inches lower in the boat, while maintaining an optimal propeller position. Gain engine hatch clearance and lower overall center of gravity for improved handling.

Discover
bravo one xr sport short
1/
1/
1/

Compatible parts & Accessories

Parts & accessories

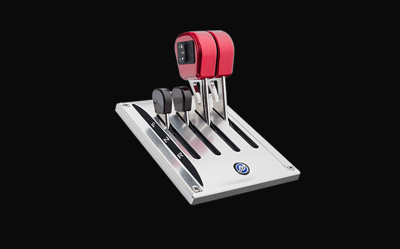

Digital Zero Effort Controls

Digital Zero Effort Controls replace the lag and hesitation of traditional throttle and shift cables with digital precision, resulting in smooth shifting and instant throttle response. Ergonomic design features short-throw levers for effortless shifting and ultra-fast throttle response, and the robust stainless-steel levers offer unmatched durability in the offshore environment. Digital Zero Effort Controls can provide automatic throttle synchronization and shadow mode for up to six engines (where two levers operate six engines) and go hand in hand with engines equipped with Mercury’s exclusive Joystick Piloting for Outboards (JPO) technology.

Discover
controls
565 engine

Parts & Accessories

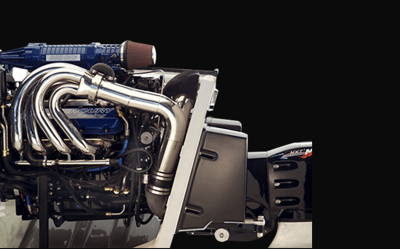

X-hAust sound Tuning

Mercury Racing's exclusive X-Haust Noise Reducer features a fully integrated sterndrive exhaust noise reduction system. X-haust was developed primarily to bring the HP600 SCi and EU662 SCi sterndrive engine packages, already certified by the European Union Recreational Craft Directive (RCD) requirements for exhaust emissions, in compliance with the stringent RCD noise regulations.

Discover

Parts & Accessories

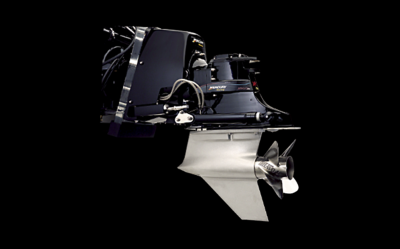

INTEGRATED TRANSOM SYSTEM (ITS)

The Integrated Transom System (ITS), developed for use with Bravo sterndrives, features integral power steering cylinders, making the transom more aesthetically pleasing and simplifying installation.

Discover
1/
1/
1/
565 engine

Ready for wide open?

Authorized Mercury Racing dealers are marine performance experts ready to help you make your Wide Open dreams come true.

Find a dealer
