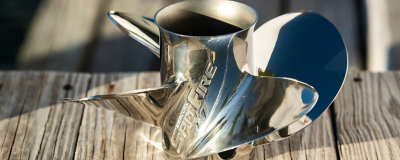

The Mercury Racing Spitfire XP propeller, designed to be the ultimate prop for the new Mercury Racing 60R outboard, can also offer outstanding performance on Mercury outboards up to 115 horsepower. The Spitfire XP has a four-blade design and long barrel that combine to deliver extra stern lift for lightning-fast hole shot, a key advantage in skinny-water applications. This precision-tuned Mercury Racing Pro Finish propeller is crafted in Mercury-exclusive X7 stainless steel alloy. It’s offered in 12-inch to 21-inch pitch in half-inch increments to dial in optimal RPM at wide-open throttle.
Pitch
Finish
| Engine Type | Pitch | HP Range | Speed | Diameter | Rotation | Part Number |
|---|---|---|---|---|---|---|
| Two-stroke, FourStroke | 12" | 40-115 | 30-55 | 14" | Right Hand | 8M0167641 |
| Two-stroke, FourStroke | 12.5" | 40-115 | 30-55 | 14" | Right Hand | 8M0167642 |
| Two-stroke, FourStroke | 13" | 40-115 | 30-55 | 14" | Right Hand | 8M0167643 |
| Two-stroke, FourStroke | 13.5" | 40-115 | 30-55 | 13.5" | Right Hand | 8M0167659 |
| Two-stroke, FourStroke | 14" | 40-115 | 30-55 | 13.5" | Right Hand | 8M0167660 |
| Two-stroke, FourStroke | 14.5" | 40-115 | 30-55 | 13.5" | Right Hand | 8M0167661 |
| Two-stroke, FourStroke | 15" | 40-115 | 30-55 | 13.5" | Right Hand | 8M0167662 |
| Two-stroke, FourStroke | 15.5" | 40-115 | 30-55 | 13" | Right Hand | 8M0167664 |
| Two-stroke, FourStroke | 16" | 40-115 | 30-55 | 13" | Right Hand | 8M0167665 |
| Two-stroke, FourStroke | 16.5" | 40-115 | 30-55 | 13" | Right Hand | 8M0167666 |
| Two-stroke, FourStroke | 17" | 40-115 | 30-55 | 13" | Right Hand | 8M0167667 |
| Two-stroke, FourStroke | 17.5" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167697 |
| Two-stroke, FourStroke | 18" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167698 |
| Two-stroke, FourStroke | 18.5" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167699 |
| Two-stroke, FourStroke | 19" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167700 |
| Two-stroke, FourStroke | 19.5" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167702 |
| Two-stroke, FourStroke | 20" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167703 |
| Two-stroke, FourStroke | 20.5" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167704 |
| Two-stroke, FourStroke | 21" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167705 |
PROP SLIP CALCULATOR
| Engine Type | Pitch | HP Range | Speed | Diameter | Rotation | Part Number |
|---|---|---|---|---|---|---|
| Two-stroke, FourStroke | 12" | 40-115 | 30-55 | 14" | Right Hand | 8M0167641 |
| Two-stroke, FourStroke | 12.5" | 40-115 | 30-55 | 14" | Right Hand | 8M0167642 |
| Two-stroke, FourStroke | 13" | 40-115 | 30-55 | 14" | Right Hand | 8M0167643 |
| Two-stroke, FourStroke | 13.5" | 40-115 | 30-55 | 13.5" | Right Hand | 8M0167659 |
| Two-stroke, FourStroke | 14" | 40-115 | 30-55 | 13.5" | Right Hand | 8M0167660 |
| Two-stroke, FourStroke | 14.5" | 40-115 | 30-55 | 13.5" | Right Hand | 8M0167661 |
| Two-stroke, FourStroke | 15" | 40-115 | 30-55 | 13.5" | Right Hand | 8M0167662 |
| Two-stroke, FourStroke | 15.5" | 40-115 | 30-55 | 13" | Right Hand | 8M0167664 |
| Two-stroke, FourStroke | 16" | 40-115 | 30-55 | 13" | Right Hand | 8M0167665 |
| Two-stroke, FourStroke | 16.5" | 40-115 | 30-55 | 13" | Right Hand | 8M0167666 |
| Two-stroke, FourStroke | 17" | 40-115 | 30-55 | 13" | Right Hand | 8M0167667 |
| Two-stroke, FourStroke | 17.5" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167697 |
| Two-stroke, FourStroke | 18" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167698 |
| Two-stroke, FourStroke | 18.5" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167699 |
| Two-stroke, FourStroke | 19" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167700 |
| Two-stroke, FourStroke | 19.5" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167702 |
| Two-stroke, FourStroke | 20" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167703 |
| Two-stroke, FourStroke | 20.5" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167704 |
| Two-stroke, FourStroke | 21" | 40-115 | 30-55 | 12.7" | Right Hand | 8M0167705 |
