Revolution4-600_CLEAR

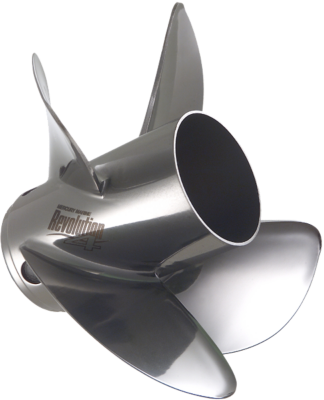

REVOLUTION 4 XP
PROPELLER

PRECISION POWER

Ways to buy

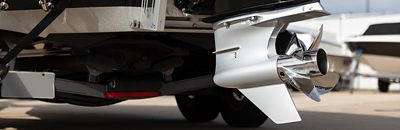

From planing performance to top-end speed, the Revolution 4 XP offers the best all-around performance for multiengine stepped-bottom outboard hulls. The Revolution 4 XP creates quicker planing because the long barrel design acts like a miniature trim tab. Thanks to an ample amount of tip cup, it also provides excellent handling through turns and rough seas.

  • Improve fuel economy and top-end speed with the Revolution 4 XP blend of tip cup for bow lift and extended straight barrel for maximum stern lift.
  • Unmatched planing performance and mid-range handling for multi-engine center consoles
  • Offers more stern lift than the Bravo I FS to improve the angle of attack in certain applications
  • In most applications, the Revolution 4 XP provides greater top-end speed than the Eco XP.
1600x519_Rev-4-XP_Side_3_4
MercuryRacing_Overlay-cropped

WE TURN RAW EMOTION INTO HORSE POWER

We bigger adventure fueled by gasoline and adrenaline. We are cutting edge. We can take you wide open.

Specs

13" to 27.5"

Pitch

14.63"

Diameter

RH & LH

Rotation

Pro Finish, Lab Finish, Lab Satin Finish

Finish

Engine Type Pitch HP Range Speed Diameter Rotation Part Number
FourStroke 17" 150-450 55-85 14.6" Right Hand 8M0142118
FourStroke 17" 150-450 55-85 14.6" Left Hand 8M0142117
FourStroke 16" 150-450 55-85 14.6" Right Hand 8M0142116
FourStroke 16" 150-450 55-85 14.6" Left Hand 8M0142115
FourStroke 15" 150-450 55-85 14.6" Right Hand 8M0142114
FourStroke 15" 150-450 55-85 14.6" Left Hand 8M0142113
FourStroke 14" 150-450 55-85 14.6" Right Hand 8M0142112
FourStroke 14" 150-450 55-85 14.6" Left Hand 8M0142111
FourStroke 13" 150-450 55-85 14.6" Right Hand 8M0142110
FourStroke 18" 150-450 55-85 14.6" Right Hand 8M0113928
FourStroke 18" 150-450 55-85 14.6" Left Hand 8M0113929
FourStroke 18.5" 150-450 55-85 14.6" Right Hand 8M0113930
FourStroke 18.5" 150-450 55-85 14.6" Left Hand 8M0113931
FourStroke 19" 150-450 55-85 14.6" Right Hand 8M0113932
FourStroke 19" 150-450 55-85 14.6" Left Hand 8M0113933
FourStroke 19.5" 150-450 55-85 14.6" Right Hand 8M0113934
FourStroke 19.5" 150-450 55-85 14.6" Left Hand 8M0113935
FourStroke 20" 150-450 55-85 14.6" Right Hand 8M0113936
FourStroke 20" 150-450 55-85 14.6" Left Hand 8M0113937
FourStroke 20.5" 150-450 55-85 14.6" Right Hand 8M0113938
FourStroke 20.5" 150-450 55-85 14.6" Left Hand 8M0113939
FourStroke 21" 150-450 55-85 14.6" Right Hand 8M0113940
FourStroke 21" 150-450 55-85 14.6" Left Hand 8M0113941
FourStroke 21.5" 150-450 55-85 14.6" Right Hand 8M0113942
FourStroke 21.5" 150-450 55-85 14.6" Left Hand 8M0113943
FourStroke 22" 150-450 55-85 14.6" Right Hand 8M0113944
FourStroke 22" 150-450 55-85 14.6" Left Hand 8M0113945
FourStroke 22.5" 150-450 55-85 14.6" Right Hand 8M0113946
FourStroke 22.5" 150-450 55-85 14.6" Left Hand 8M0113947
FourStroke 23" 150-450 55-85 14.6" Right Hand 8M0113948
FourStroke 23" 150-450 55-85 14.6" Left Hand 8M0113949
FourStroke 23.5" 150-450 55-85 14.6" Right Hand 8M0113950
FourStroke 23.5" 150-450 55-85 14.6" Left Hand 8M0113951
FourStroke 24" 150-450 55-85 14.6" Right Hand 8M0113952
FourStroke 24" 150-450 55-85 14.6" Left Hand 8M0113953
FourStroke 24.5" 150-450 55-85 14.6" Right Hand 8M0113954
FourStroke 24.5" 150-450 55-85 14.6" Left Hand 8M0113955
FourStroke 25" 150-450 55-85 14.6" Right Hand 8M0113956
FourStroke 25" 150-450 55-85 14.6" Left Hand 8M0113957
FourStroke 25.5" 150-450 55-85 14.6" Right Hand 8M0113958
FourStroke 25.5" 150-450 55-85 14.6" Left Hand 8M0113959
FourStroke 26 150-450 55-90 15" Right Hand 8M0173918
FourStroke 26.5 150-450 55-90 15" Right Hand 8M0173920
FourStroke 27 150-450 55-90 15" Right Hand 8M0173922
FourStroke 27.5 150-450 55-90 15" Right Hand 8M0173924
FourStroke 26 150-450 55-90 15" Left Hand 8M0173919
FourStroke 26.5 150-450 55-90 15" Left Hand 8M0173921
FourStroke 27 150-450 55-90 15" Left Hand 8M0173923
FourStroke 27.5 150-450 55-90 15" Left Hand 8M0173925

PROP SLIP CALCULATOR

Is it important to know your prop's slip? Only if you care about insignificant, little items like thrust.
