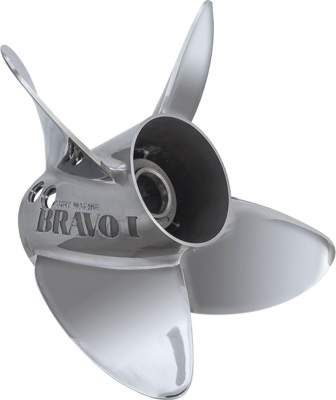

BRAVO-I-OC
BRAVO I OC
PROPELLER

PRECISION POWER

Ways to buy

The Bravo OC was designed for twin two-stroke outboard-powered catamarans but has proved to also enhance performance of single-engine 400R flats boats. Catamarans that generate natural lift will benefit from a very small barrel design and added tip cup.

  • The barrel of the Bravo OC is cut down even further than a Bravo XS.
  • Features a smaller 14.75-inch diameter for improved acceleration
  • Increased tip cup is integrated into the Bravo OC for airing out the hull for better top-end speeds.

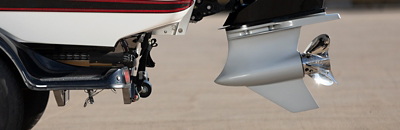

1600x519_Bravo-1-OC_Side
MercuryRacing_Overlay-cropped

WE TURN RAW EMOTION INTO HORSE POWER

We bigger adventure fueled by gasoline and adrenaline. We are cutting edge. We can take you wide open.

Specs

14.75"

Diameter

22.5" - 33"

Pitch

LH & RH

Rotation

Lab Finish

Finish

Engine Type Pitch HP Range Speed Diameter Rotation Part Number
Two-stroke 22.5" 150-400 70-110 14.5" Right Hand 8M0144040
Two-stroke 23.5" 150-400 70-110 14.5" Right Hand 8M0144042
Two-stroke 24.5" 150-400 70-110 14.5" Right Hand 8M0144044
Two-stroke 25.5" 150-400 70-110 14.5" Right Hand 8M0144046
Two-stroke 26" 150-400 70-110 14.5" Right Hand 8M0129147
Two-stroke 26.5" 150-400 70-110 14.5" Right Hand 8M0129148
Two-stroke 27" 150-400 70-110 14.5" Right Hand 8M0129149
Two-stroke 28" 150-400 70-110 14.5" Right Hand 8M0902002
Two-stroke 29" 150-400 70-110 14.5" Right Hand 8M0092004
Two-stroke 30" 150-400 70-110 14.5" Right Hand 8M0092006
Two-stroke 31" 150-400 70-110 14.5" Right Hand 8M0092008
Two-stroke 32" 150-400 70-110 14.5" Right Hand 8M0092010
Two-stroke 33" 150-400 70-110 14.5" Right Hand 8M0092012
Two-stroke 28" 150-400 70-110 14.5" Left Hand 8M0092003
Two-stroke 29" 150-400 70-110 14.5" Left Hand 8M0092005
Two-stroke 30" 150-400 70-110 14.5" Left Hand 8M0092007
Two-stroke 31" 150-400 70-110 14.5" Left Hand 8M0092009
Two-stroke 32" 150-400 70-110 14.5" Left Hand 8M0092011
Two-stroke 33" 150-400 70-110 14.5" Left Hand 8M0092013

PROP SLIP CALCULATOR

Is it important to know your prop's slip? Only if you care about insignificant, little items like thrust.

MercuryRacing_3-10-315-45-of-55
MR_CaptSteveLamp_60R_Blog_4

THERE'S AN APP FOR THAT

PROP SLIP CALCULATOR

Ways to Buy

Connect with one of our authorized dealers to choose the right power for your build.

CNC

PRODUCT DETAILS

Engine Type Pitch HP Range Speed Diameter Rotation Part Number
Two-stroke 22.5" 150-400 70-110 14.5" Right Hand 8M0144040
Two-stroke 23.5" 150-400 70-110 14.5" Right Hand 8M0144042
Two-stroke 24.5" 150-400 70-110 14.5" Right Hand 8M0144044
Two-stroke 25.5" 150-400 70-110 14.5" Right Hand 8M0144046
Two-stroke 26" 150-400 70-110 14.5" Right Hand 8M0129147
Two-stroke 26.5" 150-400 70-110 14.5" Right Hand 8M0129148
Two-stroke 27" 150-400 70-110 14.5" Right Hand 8M0129149
Two-stroke 28" 150-400 70-110 14.5" Right Hand 8M0902002
Two-stroke 29" 150-400 70-110 14.5" Right Hand 8M0092004
Two-stroke 30" 150-400 70-110 14.5" Right Hand 8M0092006
Two-stroke 31" 150-400 70-110 14.5" Right Hand 8M0092008
Two-stroke 32" 150-400 70-110 14.5" Right Hand 8M0092010
Two-stroke 33" 150-400 70-110 14.5" Right Hand 8M0092012
Two-stroke 28" 150-400 70-110 14.5" Left Hand 8M0092003
Two-stroke 29" 150-400 70-110 14.5" Left Hand 8M0092005
Two-stroke 30" 150-400 70-110 14.5" Left Hand 8M0092007
Two-stroke 31" 150-400 70-110 14.5" Left Hand 8M0092009
Two-stroke 32" 150-400 70-110 14.5" Left Hand 8M0092011
Two-stroke 33" 150-400 70-110 14.5" Left Hand 8M0092013
See All Download Products List
