SPITFIRE XP
PROPELLER

PRECISION POWER

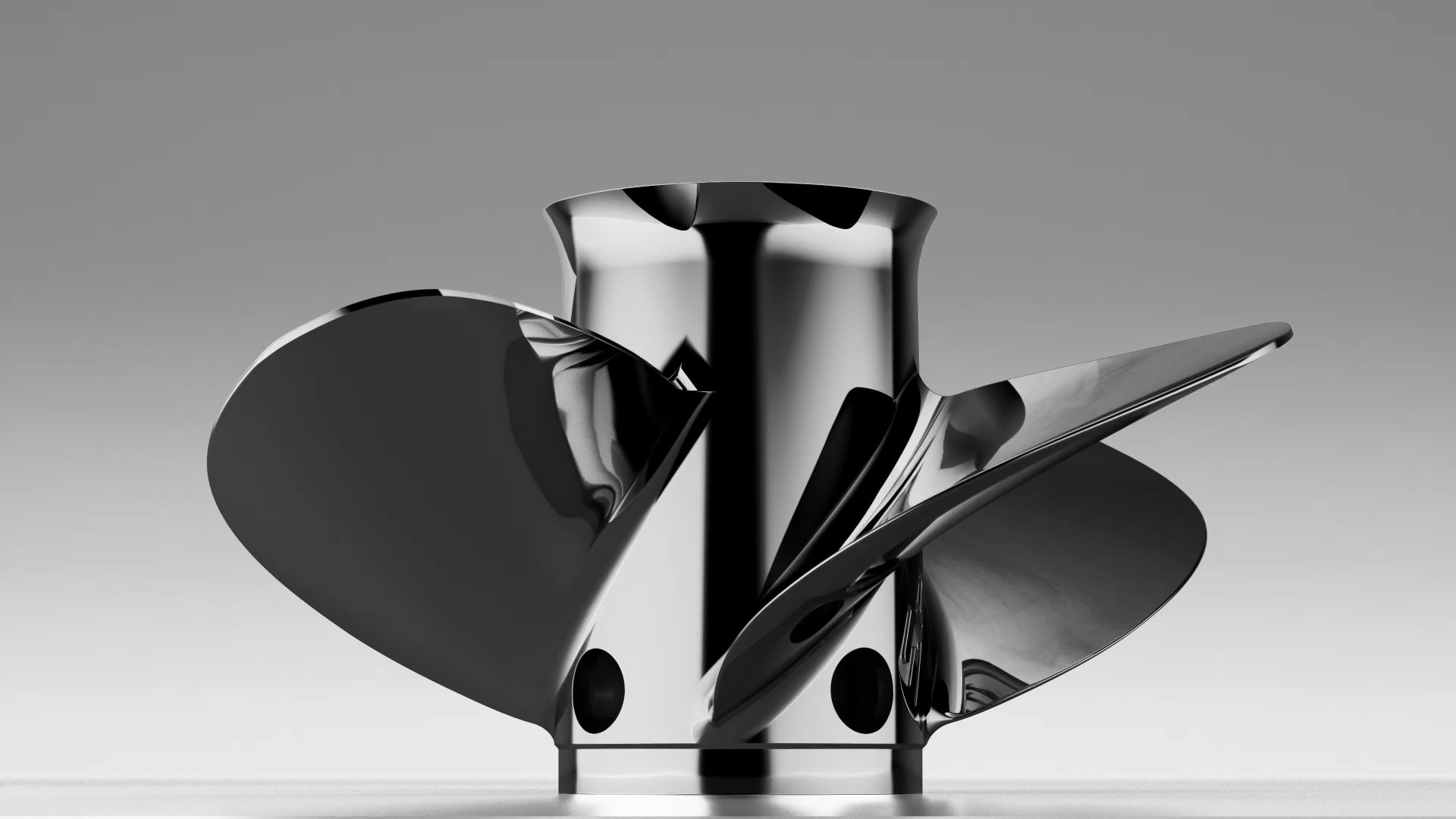

Spitfire XP
Profile Series

Spitfire XP

Overview

Designed to be the ultimate prop for the Mercury Racing® 60R Outboard, the Spitfire® XP offers unmatched hole shot, handling, and top-end speed. The four-blade design and long barrel offer lightning-fast hole shot, ideal for shallow-water running. This prop is also suitable for other outboards up to 115hp that benefit from elevated engine heights and additional stern lift.

This prop features the Mercury Racing® Pro Finish, expertly hand-finished and fine-tuned with perfectly matching cup heights and a custom blade thickness profile for consistent, fine-tuned performance. Use half-inch pitch increments to dial in the ideal RPM at wide open throttle.

Engine Type

Two-Stroke, Four-Stroke

Application

Flats

Speed

30-55 MPH

HP Range

40HP to 115HP

Blades

4

Finish

PRO

Diameter

12.7", 13", 13.5", 14"

Pitch Range

12" - 21"

Specs

add alt
View Full Specs

Facts & Figures

Diameter

12.7", 13", 13.5", 14"

Pitch Range

12" to 21"

Rotation

RH

Finish

PRO

Product Details

Part Number

Pitch

Diameter

Rotation

8M0167705 21" 12.7" RH
8M0167704 20.5" 12.7" RH
8M0167703 20" 12.7" RH
8M0167702 19.5" 12.7" RH
8M0167700 19" 12.7" RH
8M0167699 18.5" 12.7" RH
8M0167698 18" 12.7" RH
8M0167697 17.5" 12.7" RH
8M0167667 17" 13" RH
8M0167666 16.5" 13" RH
8M0167665 16" 13" RH
8M0167664 15.5" 13" RH
8M0167662 15" 13.5" RH
8M0167661 14.5" 13.5" RH
8M0167660 14" 13.5" RH
8M0167659 13.5" 13.5" RH
8M0167643 13" 14" RH
8M0167642 12.5" 14" RH
8M0167641 12" 14" RH
Prop Slip Calculator

Prop Slip Calculator

Calculate
add alt

Ways to Buy

Inquire
MR_60R-SpitFireXP_Webpage_Hero_1550x525
MercuryRacing_Overlay-cropped

WE TURN RAW EMOTION INTO HORSEPOWER

We build bigger adventure fueled by gasoline and adrenaline. We are cutting edge. We can take you wide open.

Specs

12" to 21"

Pitch

Pro Finish

Finish

Product Details

Engine Type Pitch HP Range Speed Diameter Rotation Part Number
Two-stroke, FourStroke 12" 40-115 30-55 14" Right Hand 8M0167641
Two-stroke, FourStroke 12.5" 40-115 30-55 14" Right Hand 8M0167642
Two-stroke, FourStroke 13" 40-115 30-55 14" Right Hand 8M0167643
Two-stroke, FourStroke 13.5" 40-115 30-55 13.5" Right Hand 8M0167659
Two-stroke, FourStroke 14" 40-115 30-55 13.5" Right Hand 8M0167660
Two-stroke, FourStroke 14.5" 40-115 30-55 13.5" Right Hand 8M0167661
Two-stroke, FourStroke 15" 40-115 30-55 13.5" Right Hand 8M0167662
Two-stroke, FourStroke 15.5" 40-115 30-55 13" Right Hand 8M0167664
Two-stroke, FourStroke 16" 40-115 30-55 13" Right Hand 8M0167665
Two-stroke, FourStroke 16.5" 40-115 30-55 13" Right Hand 8M0167666
Two-stroke, FourStroke 17" 40-115 30-55 13" Right Hand 8M0167667
Two-stroke, FourStroke 17.5" 40-115 30-55 12.7" Right Hand 8M0167697
Two-stroke, FourStroke 18" 40-115 30-55 12.7" Right Hand 8M0167698
Two-stroke, FourStroke 18.5" 40-115 30-55 12.7" Right Hand 8M0167699
Two-stroke, FourStroke 19" 40-115 30-55 12.7" Right Hand 8M0167700
Two-stroke, FourStroke 19.5" 40-115 30-55 12.7" Right Hand 8M0167702
Two-stroke, FourStroke 20" 40-115 30-55 12.7" Right Hand 8M0167703
Two-stroke, FourStroke 20.5" 40-115 30-55 12.7" Right Hand 8M0167704
Two-stroke, FourStroke 21" 40-115 30-55 12.7" Right Hand 8M0167705
