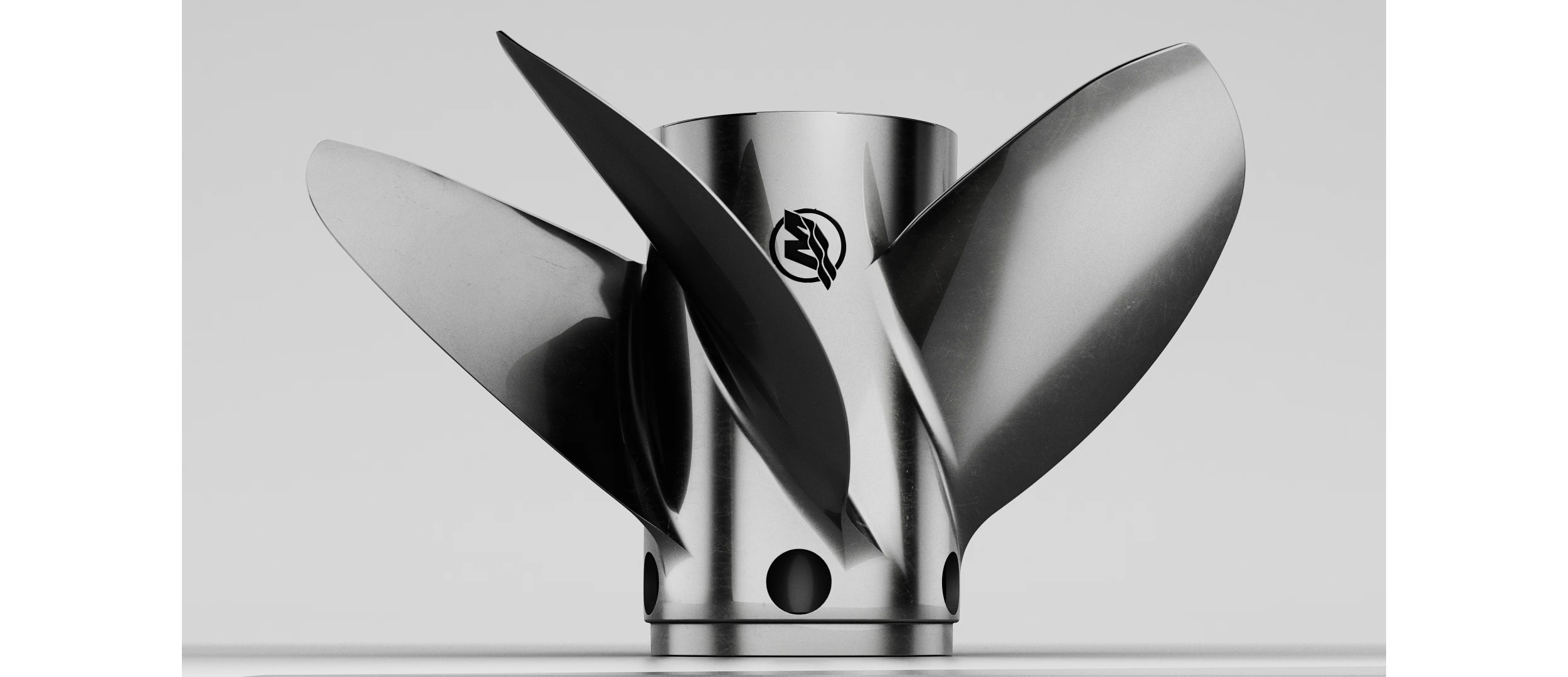

Propeller-Model-MAX5-Hero-Image
MAX5
PROPELLER

Precision power

MAX 5
Profile Series

Max 5

Overview

The Mercury Racing MAX5 propeller is designed for both single and multi engine applications, from 250R outboards to 600sci sterndrives, in which drive heights are very high and speeds are typically in excess of 75 mph. The MAX5 will often cut slip percentages in half when compared to its Bravo I counterpart, leading to improved mid range cruise and top end speeds.

One-half inch pitch offerings enable engines to be dialed in to their maximum rpm operating range for enhanced throttle response, optimized cruise fuel efficiency and top speed. The stainless steel prop features the patented Mercury® Performance Vent System® (PVS®) which allows the operator to fine-tune the amount of exhaust venting needed for quick planning.

Engine Type

Four-Stroke, Sterndrive

Application

Bass, Center Console, Catamaran, Sport V Bottom

Speed

80-110 MPH

HP Range

250HP to 600HP

Blades

5

Finish

Lab

Diameter

15" - 15.25"

Pitch Range

22.3" TO 34"

Specs

add alt
View Full Specs

Facts & Figures

Diameter

15" - 15.25"

Pitch Range

22.3" to 34"

Rotation

RH & LH

Finish

Lab

Product Details

Part Number

Pitch

Diameter

Rotation

8M0156490 34" 15.25" RH
8M0156491 34" 15.25" LH
8M0156488 33.5" 15.25" RH
8M0156489 33.5" 15.25" LH
8M0156486 33" 15.25" RH
8M0156487 33" 15.25" LH
8M0156484 32.5" 15.25" RH
8M0156485 32.5" 15.25" LH
8M0156480 32" 15.25" RH
8M0156481 32" 15.25" LH
8M0156478 31.5" 15.25" RH
8M0156479 31.5" 15.25" LH
8M0156476 31" 15.25" RH
8M0156477 31" 15.25" LH
8M0156474 30.5" 15.25" RH
8M0156475 30.5" 15.25" LH
8M0156470 30" 15.25" RH
8M0156471 30" 15.25" LH
8M0156468 29.5" 15.25" RH
8M0156469 29.5" 15.25" LH
8M0156466 29" 15.25" RH
8M0156467 29" 15.25" LH
8M0156464 28.5" 15.25" RH
8M0156465 28.5" 15.25" LH
8M0156460 28" 15.25" RH
8M0156461 28" 15.25" LH
8M0156458 27.5" 15.25" RH
8M0156459 27.5" 15.25" LH
8M0156456 27" 15.25" RH
8M0156457 27" 15.25" LH
8M0156454 26.5" 15.25" RH
8M0156455 26.5" 15.25" LH
8M0156450 26" 15.25" RH
8M0156451 26" 15.25" LH
8M0156448 25.5" 15.25" RH
8M0156449 25.5" 15.25" LH
8M0156446 25" 15.25" RH
8M0156447 25" 15.25" LH
8M0156444 24.5" 15.25" RH
8M0156445 24.5" 15.25" LH
8M0156440 24" 15.25" RH
8M0156441 24" 15.25" LH
8M0156438 23.5" 15.25" RH
8M0156439 23.5" 15.25" LH
8M0156436 23" 15.25" RH
8M0156437 23" 15.25" LH
8M0156434 22.5" 15.25" RH
8M0156435 22.5" 15.25" LH
8M0118016 34" 15" RH
8M0118017 34" 15" LH
8M0118014 33.5" 15" RH
8M0118015 33.5" 15" LH
8M0118012 33" 15" RH
8M0118013 33" 15" LH
8M0131166 32.8" 15" RH
8M0131167 32.8" 15" LH
8M0131164 32.3" 15" RH
8M0131165 32.3" 15" LH
8M0118010 32" 15" RH
8M0118011 32" 15" LH
8M0118008 31.5" 15" RH
8M0118009 31.5" 15" LH
8M0118006 31" 15" RH
8M0118007 31" 15" LH
8M0131162 30.8" 15" RH
8M0131163 30.8" 15" LH
8M0131160 30.3" 15" RH
8M0131161 30.3" 15" LH
8M0118004 30" 15" RH
8M0118005 30" 15" LH
8M0118002 29.5" 15" RH
8M0118003 29.5" 15" LH
8M0118000 29" 15" RH
8M0118001 29" 15" LH
8M0131158 28.8" 15" RH
8M0131159 28.8" 15" LH
8M0131156 28.3" 15" RH
8M0131157 28.3" 15" LH
8M0117998 28" 15" RH
8M0117999 28" 15" LH
8M0117996 27.5" 15" RH
8M0117997 27.5" 15" LH
8M0117994 27" 15" RH
8M0117995 27" 15" LH
8M0131154 26.8" 15" RH
8M0131155 26.8" 15" LH
8M0131152 26.3" 15" RH
8M0131153 26.3" 15" LH
8M0117992 26" 15" RH
8M0117993 26" 15" LH
8M0117990 25.5" 15" RH
8M0117991 25.5" 15" LH
8M0117988 25" 15" RH
8M0117989 25" 15" LH
8M0131150 24.8" 15" RH
8M0131151 24.8" 15" LH
8M0131148 24.3" 15" RH
8M0131149 24.3" 15" LH
8M0117986 24" 15" RH
8M0117987 24" 15" LH
8M0117984 23.5" 15" RH
8M0117985 23.5" 15" LH
8M0117982 23" 15" RH
8M0117983 23" 15" LH
8M0131147 22.8" 15" LH
8M0131146 22.8" 15" RH
8M0131145 22.3" 15" LH
8M0131144 22.3" 15" RH
Prop Slip Calculator

Prop Slip Calculator

Calculate
add alt

Ways to Buy

Inquire
propellers_universal_props_header
MercuryRacing_Overlay-cropped

WE TURN RAW EMOTION INTO HORSEPOWER

We build bigger adventure fueled by gasoline and adrenaline. We are cutting edge. We can take you wide open.

Specs

15" & 15.25"

Diameter

22.3" - 34"

Pitch

LH & RH

Rotation

Lab Finish

Finish

PRODUCT DETAILS

Engine Type Pitch HP Range Speed Diameter Rotation Part Number
FourStroke, Sterndrive 22.5" 250-600 80-110 15.25" Right Hand 8M0156434
FourStroke, Sterndrive 23" 250-600 80-110 15.25" Right Hand 8M0156436
FourStroke, Sterndrive 23.5" 250-600 80-110 15.25" Right Hand 8M0156438
FourStroke, Sterndrive 24" 250-600 80-110 15.25" Right Hand 8M0156440
FourStroke, Sterndrive 22.5" 250-600 80-110 15.25" Left Hand 8M0156435
FourStroke, Sterndrive 23" 250-600 80-110 15.25" Left Hand 8M0156437
FourStroke, Sterndrive 23.5" 250-600 80-110 15.25" Left Hand 8M0156439
FourStroke, Sterndrive 24" 250-600 80-110 15.25" Left Hand 8M0156441
FourStroke, Sterndrive 24.5" 250-600 80-110 15.25" Right Hand 8M0156444
FourStroke, Sterndrive 25" 250-600 80-110 15.25" Right Hand 8M0156446
FourStroke, Sterndrive 25.5" 250-600 80-110 15.25" Right Hand 8M0156448
FourStroke, Sterndrive 26" 250-600 80-110 15.25" Right Hand 8M0156450
FourStroke, Sterndrive 24.5" 250-600 80-110 15.25" Left Hand 8M0156445
FourStroke, Sterndrive 25" 250-600 80-110 15.25" Left Hand 8M0156447
FourStroke, Sterndrive 25.5" 250-600 80-110 15.25" Left Hand 8M0156449
FourStroke, Sterndrive 26" 250-600 80-110 15.25" Left Hand 8M0156451
FourStroke, Sterndrive 26.5" 250-600 80-110 15.25" Right Hand 8M0156454
FourStroke, Sterndrive 27" 250-600 80-110 15.25" Right Hand 8M0156456
FourStroke, Sterndrive 27.5" 250-600 80-110 15.25" Right Hand 8M0156458
FourStroke, Sterndrive 28" 250-600 80-110 15.25" Right Hand 8M0156460
FourStroke, Sterndrive 26.5" 250-600 80-110 15.25" Left Hand 8M0156455
FourStroke, Sterndrive 27" 250-600 80-110 15.25" Left Hand 8M0156457
FourStroke, Sterndrive 27.5" 250-600 80-110 15.25" Left Hand 8M0156459
FourStroke, Sterndrive 28" 250-600 80-110 15.25" Left Hand 8M0156461
FourStroke, Sterndrive 28.5" 250-600 80-110 15.25" Right Hand 8M0156464
FourStroke, Sterndrive 29" 250-600 80-110 15.25" Right Hand 8M0156466
FourStroke, Sterndrive 29.5" 250-600 80-110 15.25" Right Hand 8M0156468
FourStroke, Sterndrive 30" 250-600 80-110 15.25" Right Hand 8M0156470
FourStroke, Sterndrive 28.5" 250-600 80-110 15.25" Left Hand 8M0156465
FourStroke, Sterndrive 29" 250-600 80-110 15.25" Left Hand 8M0156467
FourStroke, Sterndrive 29.5" 250-600 80-110 15.25" Left Hand 8M0156469
FourStroke, Sterndrive 30" 250-600 80-110 15.25" Left Hand 8M0156471
FourStroke, Sterndrive 30.5" 250-600 80-110 15.25" Right Hand 8M0156474
FourStroke, Sterndrive 31" 250-600 80-110 15.25" Right Hand 8M0156476
FourStroke, Sterndrive 31.5" 250-600 80-110 15.25" Right Hand 8M0156478
FourStroke, Sterndrive 32" 250-600 80-110 15.25" Right Hand 8M0156480
FourStroke, Sterndrive 30.5" 250-600 80-110 15.25" Left Hand 8M0156475
FourStroke, Sterndrive 31" 250-600 80-110 15.25" Left Hand 8M0156477
FourStroke, Sterndrive 31.5" 250-600 80-110 15.25" Left Hand 8M0156479
FourStroke, Sterndrive 32" 250-600 80-110 15.25" Left Hand 8M0156481
FourStroke, Sterndrive 32.5" 250-600 80-110 15.25" Right Hand 8M0156484
FourStroke, Sterndrive 33" 250-600 80-110 15.25" Right Hand 8M0156486
FourStroke, Sterndrive 33.5" 250-600 80-110 15.25" Right Hand 8M0156488
FourStroke, Sterndrive 34" 250-600 80-110 15.25" Right Hand 8M0156490
FourStroke, Sterndrive 32.5" 250-600 80-110 15.25" Left Hand 8M0156485
FourStroke, Sterndrive 33" 250-600 80-110 15.25" Left Hand 8M0156487
FourStroke, Sterndrive 33.5" 250-600 80-110 15.25" Left Hand 8M0156489
FourStroke, Sterndrive 34" 250-600 80-110 15.25" Left Hand 8M0156491
FourStroke, Sterndrive 23" 250-600 80-110 15" Right Hand 8M0117982
FourStroke, Sterndrive 23" 250-600 80-110 15" Left Hand 8M0117983
FourStroke, Sterndrive 23.5" 250-600 80-110 15" Right Hand 8M0117984
FourStroke, Sterndrive 23.5" 250-600 80-110 15" Left Hand 8M0117985
FourStroke, Sterndrive 24" 250-600 80-110 15" Right Hand 8M0117986
FourStroke, Sterndrive 24" 250-600 80-110 15" Left Hand 8M0117987
FourStroke, Sterndrive 25" 250-600 80-110 15" Right Hand 8M0117988
FourStroke, Sterndrive 25" 250-600 80-110 15" Left Hand 8M0117989
FourStroke, Sterndrive 25.5" 250-600 80-110 15" Right Hand 8M0117990
FourStroke, Sterndrive 25.5" 250-600 80-110 15" Left Hand 8M0117991
FourStroke, Sterndrive 26" 250-600 80-110 15" Right Hand 8M0117992
FourStroke, Sterndrive 26" 250-600 80-110 15" Left Hand 8M0117993
FourStroke, Sterndrive 27" 250-600 80-110 15" Right Hand 8M0117994
FourStroke, Sterndrive 27" 250-600 80-110 15" Left Hand 8M0117995
FourStroke, Sterndrive 27.5" 250-600 80-110 15" Right Hand 8M0117996
FourStroke, Sterndrive 27.5" 250-600 80-110 15" Left Hand 8M0117997
FourStroke, Sterndrive 28" 250-600 80-110 15" Right Hand 8M0117998
FourStroke, Sterndrive 28" 250-600 80-110 15" Left Hand 8M0117999
FourStroke, Sterndrive 29" 250-600 80-110 15" Right Hand 8M0118000
FourStroke, Sterndrive 29" 250-600 80-110 15" Left Hand 8M0118001
FourStroke, Sterndrive 29.5" 250-600 80-110 15" Right Hand 8M0118002
FourStroke, Sterndrive 29.5" 250-600 80-110 15" Left Hand 8M0118003
FourStroke, Sterndrive 30" 250-600 80-110 15" Right Hand 8M0118004
FourStroke, Sterndrive 30" 250-600 80-110 15" Left Hand 8M0118005
FourStroke, Sterndrive 31" 250-600 80-110 15" Right Hand 8M0118006
FourStroke, Sterndrive 31" 250-600 80-110 15" Left Hand 8M0118007
FourStroke, Sterndrive 31.5" 250-600 80-110 15" Right Hand 8M0118008
FourStroke, Sterndrive 31.5" 250-600 80-110 15" Left Hand 8M0118009
FourStroke, Sterndrive 32" 250-600 80-110 15" Right Hand 8M0118010
FourStroke, Sterndrive 32" 250-600 80-110 15" Left Hand 8M0118011
FourStroke, Sterndrive 33" 250-600 80-110 15" Right Hand 8M0118012
FourStroke, Sterndrive 33" 250-600 80-110 15" Left Hand 8M0118013
FourStroke, Sterndrive 33.5" 250-600 80-110 15" Right Hand 8M0118014
FourStroke, Sterndrive 33.5" 250-600 80-110 15" Left Hand 8M0118015
FourStroke, Sterndrive 34" 250-600 80-110 15" Right Hand 8M0118016
FourStroke, Sterndrive 34" 250-600 80-110 15" Left Hand 8M0118017
