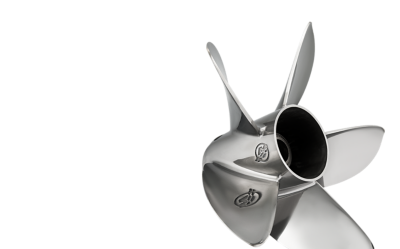

The Mercury Racing MAX5 ST propeller is designed specifically to maximize the performance of boats powered by the 4.6L V8 Mercury Racing® 300R outboard with a Sport Master gearcase. The shortened exhaust barrel enhances the performance of single-engine bass boats and twin-engine catamarans by keeping the stern planted for a confident ride, while the large 15.25-inch-diameter helps this prop stay hooked up at extreme engine heights.
Half-inch pitch offerings enable engines to be dialed in to their maximum rpm operating range for enhanced throttle response, optimized cruise fuel efficiency and top speed. The stainless steel MAX5 ST features the patented Mercury® Performance Vent System® (PVS®), which enables the user to fine-tune the amount of exhaust venting needed for quick planing.
Engine Type
Four-Stroke, Sterndrive
Application
Bass, Center Console, Catamaran, Sport V Bottom
Speed
80-110 MPH
HP Range
250HP to 600HP
Blades
5
Finish
Lab
Diameter
15.25"
Pitch Range
22.5" - 34"
View Part Numbers
MAX5 ST.pdf
17.4 MBDOWNLOAD
Diameter
15.25"
Pitch Range
20" to 33"
Rotation
RH & LH
Finish
Lab
View Part Numbers
Product Details
|
Part Number |
Pitch |
Diameter |
Rotation |
|---|---|---|---|
| 8M0156550 | 34" | 15.25" | RH |
| 8M0156551 | 34" | 15.25" | LH |
| 8M0156548 | 33.5" | 15.25" | RH |
| 8M0156549 | 33.5" | 15.25" | LH |
| 8M0156546 | 33" | 15.25" | RH |
| 8M0156547 | 33" | 15.25" | LH |
| 8M0156544 | 32.5" | 15.25" | RH |
| 8M0156545 | 32.5" | 15.25" | LH |
| 8M0156540 | 32" | 15.25" | RH |
| 8M0156541 | 32" | 15.25" | LH |
| 8M0156538 | 31.5" | 15.25" | RH |
| 8M0156539 | 31.5" | 15.25" | LH |
| 8M0156536 | 31" | 15.25" | RH |
| 8M0156537 | 31" | 15.25" | LH |
| 8M0156534 | 30.5" | 15.25" | RH |
| 8M0156535 | 30.5" | 15.25" | LH |
| 8M0156530 | 30" | 15.25" | RH |
| 8M0156531 | 30" | 15.25" | LH |
| 8M0156528 | 29.5" | 15.25" | RH |
| 8M0156529 | 29.5" | 15.25" | LH |
| 8M0156526 | 29" | 15.25" | RH |
| 8M0156527 | 29" | 15.25" | LH |
| 8M0156524 | 28.5" | 15.25" | RH |
| 8M0156525 | 28.5" | 15.25" | LH |
| 8M0156520 | 28" | 15.25" | RH |
| 8M0156521 | 28" | 15.25" | LH |
| 8M0156518 | 27.5" | 15.25" | RH |
| 8M0156519 | 27.5" | 15.25" | LH |
| 8M0156516 | 27" | 15.25" | RH |
| 8M0156517 | 27" | 15.25" | LH |
| 8M0156514 | 26.5" | 15.25" | RH |
| 8M0156515 | 26.5" | 15.25" | LH |
| 8M0156510 | 26" | 15.25" | RH |
| 8M0156511 | 26" | 15.25" | LH |
| 8M0156508 | 25.5" | 15.25" | RH |
| 8M0156509 | 25.5" | 15.25" | LH |
| 8M0156506 | 25" | 15.25" | RH |
| 8M0156507 | 25" | 15.25" | LH |
| 8M0156504 | 24.5" | 15.25" | RH |
| 8M0156505 | 24.5" | 15.25" | LH |
| 8M0156500 | 24" | 15.25" | RH |
| 8M0156501 | 24" | 15.25" | LH |
| 8M0156498 | 23.5" | 15.25" | RH |
| 8M0156499 | 23.5" | 15.25" | LH |
| 8M0156496 | 23" | 15.25" | RH |
| 8M0156497 | 23" | 15.25" | LH |
| 8M0156494 | 22.5" | 15.25" | RH |
| 8M0156495 | 22.5" | 15.25" | LH |
The Mercury Racing MAX5 ST propeller, developed and handcrafted by Mercury Racing Propeller artisans, is designed for the 4.6L V8 300R FourStroke outboard with Sport Master gearcase. The shortened exhaust barrel enhances the performance of single-engine bass boats and twin-engine catamarans by keeping the stern planted for a confidence-inspired ride, while the large 15.25-inch-diameter prop stays hooked up at extreme engine heights.
The results are in – a 300R FourStroke spinning a 31-inch pitch MAX5 ST prop powered a tournamentloaded Bullet 21 XRS bass boat to 97.5 mph with a mere 7 percent slip!
Half-inch pitch offerings enable engines to be dialed in to their maximum rpm operating range for enhanced throttle response, optimized cruise fuel efficiency and top speed.
We build bigger adventure fueled by gasoline and adrenaline. We are cutting edge. We can take you wide open.
Diameter
Pitch
Rotation
Finish
| Engine Type | Pitch | HP Range | Speed | Diameter | Rotation | Part Number |
|---|---|---|---|---|---|---|
| FourStroke, Sterndrive | 22.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156494 |
| FourStroke, Sterndrive | 23" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156496 |
| FourStroke, Sterndrive | 23.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156498 |
| FourStroke, Sterndrive | 24" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156500 |
| FourStroke, Sterndrive | 22.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156495 |
| FourStroke, Sterndrive | 23" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156497 |
| FourStroke, Sterndrive | 23.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156499 |
| FourStroke, Sterndrive | 24" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156501 |
| FourStroke, Sterndrive | 24.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156504 |
| FourStroke, Sterndrive | 25" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156506 |
| FourStroke, Sterndrive | 25.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156508 |
| FourStroke, Sterndrive | 26" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156510 |
| FourStroke, Sterndrive | 24.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156505 |
| FourStroke, Sterndrive | 25" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156507 |
| FourStroke, Sterndrive | 25.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156509 |
| FourStroke, Sterndrive | 26" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156511 |
| FourStroke, Sterndrive | 26.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156514 |
| FourStroke, Sterndrive | 27" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156516 |
| FourStroke, Sterndrive | 27.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156518 |
| FourStroke, Sterndrive | 28" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156520 |
| FourStroke, Sterndrive | 26.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156515 |
| FourStroke, Sterndrive | 27" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156517 |
| FourStroke, Sterndrive | 27.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156519 |
| FourStroke, Sterndrive | 28" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156521 |
| FourStroke, Sterndrive | 28.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156524 |
| FourStroke, Sterndrive | 29" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156526 |
| FourStroke, Sterndrive | 29.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156528 |
| FourStroke, Sterndrive | 30" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156530 |
| FourStroke, Sterndrive | 28.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156525 |
| FourStroke, Sterndrive | 29" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156527 |
| FourStroke, Sterndrive | 29.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156529 |
| FourStroke, Sterndrive | 30" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156531 |
| FourStroke, Sterndrive | 30.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156534 |
| FourStroke, Sterndrive | 31" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156536 |
| FourStroke, Sterndrive | 31.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156538 |
| FourStroke, Sterndrive | 32" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156540 |
| FourStroke, Sterndrive | 30.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156535 |
| FourStroke, Sterndrive | 31" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156537 |
| FourStroke, Sterndrive | 31.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156539 |
| FourStroke, Sterndrive | 32" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156541 |
| FourStroke, Sterndrive | 32.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156544 |
| FourStroke, Sterndrive | 33" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156546 |
| FourStroke, Sterndrive | 33.5" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156548 |
| FourStroke, Sterndrive | 34" | 250-600 | 80-110 | 15.25" | Right Hand | 8M0156550 |
| FourStroke, Sterndrive | 32.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156545 |
| FourStroke, Sterndrive | 33" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156547 |
| FourStroke, Sterndrive | 33.5" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156549 |
| FourStroke, Sterndrive | 34" | 250-600 | 80-110 | 15.25" | Left Hand | 8M0156551 |
