Small But Mighty

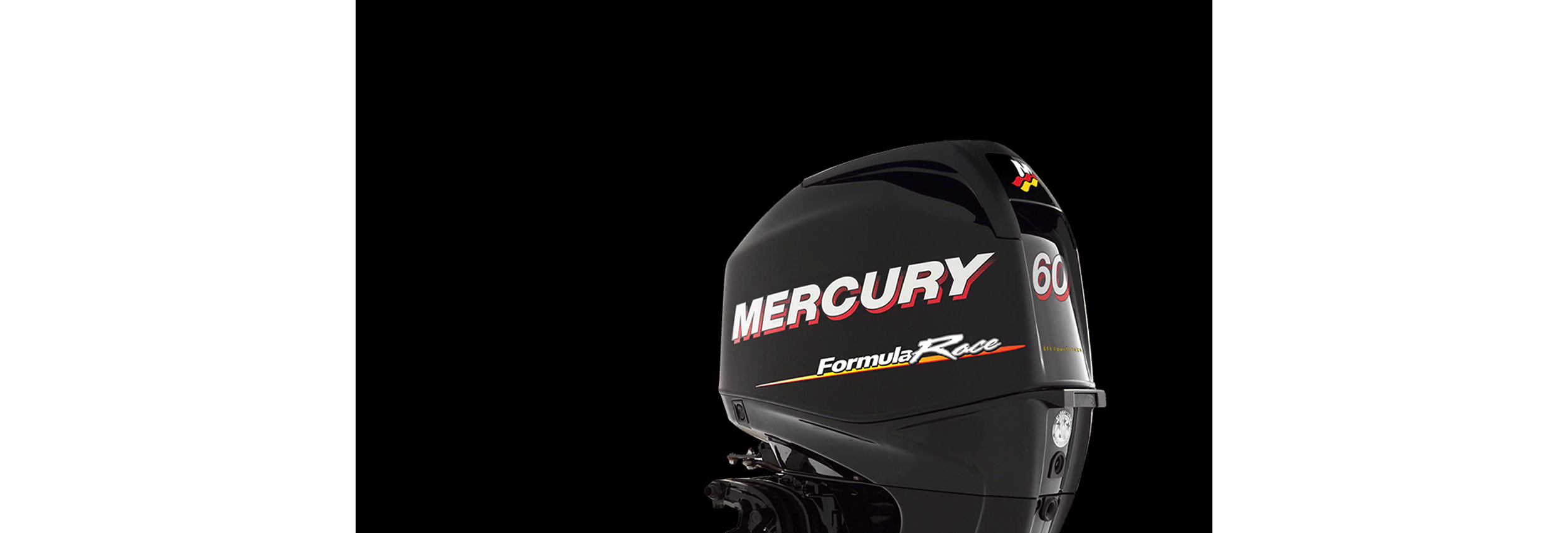

Designed to be a reliable performer, the 60 EFI FormulaRace utilizes a 1.0-liter, four-cylinder Mercury 60 FourStroke powerhead with a 15-inch midsection and a Mercury Racing cowl. In competition the 60 EFI FormulaRace powers compact tunnel hull catamaran race boats to a top speed of 75 mph. Formula-4S is intended to be an entry class for professional tunnel boat competition, and this reliable and rugged racing outboard lets racers focus on honing their skills rather than on maintaining the engine. The result is exciting and close racing action. 

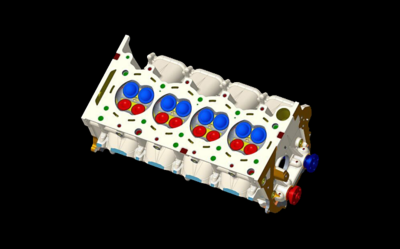

Low-Emissions Powerhead

Four-stroke 995cc powerhead has a Three Star rating and produces significantly lower exhaust emissions the two-stroke competition engines it has replaced.

Powerhead
EFI

EFI

Electronic Fuel Injection produces instant starts and precise metering of fuel at all speeds.

PUMP FUEL

Produces peak performance on low-cost 87-octane gasoline.

Pump fuel
Light weight

Light Weight

A dry weight of just 247 pounds improves race-ready power-to-weight ratio.

1/
1/
1/
1/

Best In Class

Best in class in terms of power to weight ratio for unmatched acceleration, top speed and efficiency.

Feature 60EFI
60EFI
60EFI Racing
60 APX
Specs Background
View all Specifications

Facts & Figures

FULL THROTTLE RPM

5500-6000

RATED HP

60

CYLINDERS

L4

DISPLACEMENT

60.8 CID

Product Details

SHAFT LENGTH 15
TRIM SYSTEM Power Trim
WARRANTY N/A
BORE & STROKE 2.56 x 2.95 IN/65 x 75 MM
INDUCTION SYSTEM 2-Valve Per Cylinder, Single Overhead Cam (SOHC)
FUEL REQUIREMENT Unleaded Regular 87 Octane Minimum (R+M/2) Or 90 RON 10% Ethanol Maximum
IGNITION SYSTEM ECM 555 Digital Inductive
CHARGING 18 AMP
STARTING Electric (Turn-key)
OIL REQUIREMENT Mercury Racing 4-Stroke Oil
GEAR RATIO 1.82:1
DRY WEIGHT 247 LBS
ENGINE TYPE L4
COOLING SYSTEM Water-cooled with Thermostat Control
EXHAUST SYSTEM Through Prop
LUBRICATION SYSTEM Integrated Wet Sump
GEAR SHIFT F-N-R
