Each element of the 400R intake tract has been fine-tuned to function as a performance-boosting system. A short-run air snorkel feeds cool ambient air directly from the cowl intake port to the screw-type supercharger. The supercharger is water-cooled to reduce the temperature and increase the density of the exiting compressed air charge. A charge air cooler behind the supercharger further enhances air density before the charge enters the engine. Electronic boostpressure control monitors and maintains peak performance as ambient conditions change. Precise control is a key element of performance boating. The Mercury Racing 400R is equipped with race-proven stainless-steel guide plates on the lower transom bracket that stabilize the engine for improved durability and steady handling at high speeds and in rough sea conditions. Specific 400R engine mounts within the Mercury Racing Advanced MidSection (AMS) were selected for the perfect combination of handling and running quality. A 6400-7000 rpm wide-open throttle operating range and a 1.75:1 gear ratio offer a wide window for propping options. The 400R is available in Cold Fusion White or classic Phantom Black base colors and standard Mercury Racing graphics. Use the available custom graphics package offered in seven bold colors to reflect a personal style or match the color palette of the boat.

Primary

20, 25, or 30

SHAFT LENGTH

Standard

TRIM SYSTEM

AMS

MID SECTION

Straight or Camber

SKEG

SHOW MORE

3-Year²

WARRANTY

Supercharged with Cold Air Intake and charge air cooling and electronic boost pressure control

INDUCTION SYSTEM

Unleaded Regular 89 Octane Minimum (R+M/2) or 95 RON 10% Ethanol Maximum

FUEL REQUIREMENT

Sequential Multi-Port Electronic Fuel Injectin (EFI)

FUEL SYSTEM

Electric (Turn-key) with SmartStart

STARTING

NMMA Certified FCW SAE 25W-50

OIL REQUIREMENT

26

MINIMUM CENTERLINE MOUNTING DISTANCE (IN)

Yes

JPO OPTION

HD or SportMaster

GEARCASE

1.75:1

GEAR RATIO

Yes

TIE BAR BRACKET OPTION

668 LBS

DRY WEIGHT

SHOW LESS
DETAILS

Each element of the 400R intake tract has been fine-tuned to function as a performance-boosting system. A short-run air snorkel feeds cool ambient air directly from the cowl intake port to the screw-type supercharger. The supercharger is water-cooled to reduce the temperature and increase the density of the exiting compressed air charge. A charge air cooler behind the supercharger further enhances air density before the charge enters the engine. Electronic boostpressure control monitors and maintains peak performance as ambient conditions change. Precise control is a key element of performance boating. The Mercury Racing 400R is equipped with race-proven stainless-steel guide plates on the lower transom bracket that stabilize the engine for improved durability and steady handling at high speeds and in rough sea conditions. Specific 400R engine mounts within the Mercury Racing Advanced MidSection (AMS) were selected for the perfect combination of handling and running quality. A 6400-7000 rpm wide-open throttle operating range and a 1.75:1 gear ratio offer a wide window for propping options. The 400R is available in Cold Fusion White or classic Phantom Black base colors and standard Mercury Racing graphics. Use the available custom graphics package offered in seven bold colors to reflect a personal style or match the color palette of the boat.

Specifications
Primary

20, 25, or 30

SHAFT LENGTH

Standard

TRIM SYSTEM

AMS

MID SECTION

Straight or Camber

SKEG

SHOW MORE

3-Year²

WARRANTY

Supercharged with Cold Air Intake and charge air cooling and electronic boost pressure control

INDUCTION SYSTEM

Unleaded Regular 89 Octane Minimum (R+M/2) or 95 RON 10% Ethanol Maximum

FUEL REQUIREMENT

Sequential Multi-Port Electronic Fuel Injectin (EFI)

FUEL SYSTEM

Electric (Turn-key) with SmartStart

STARTING

NMMA Certified FCW SAE 25W-50

OIL REQUIREMENT

26

MINIMUM CENTERLINE MOUNTING DISTANCE (IN)

Yes

JPO OPTION

HD or SportMaster

GEARCASE

1.75:1

GEAR RATIO

Yes

TIE BAR BRACKET OPTION

668 LBS

DRY WEIGHT

SHOW LESS
Primary

20, 25, or 30

SHAFT LENGTH

Standard

TRIM SYSTEM

AMS

MID SECTION

Straight or Camber

SKEG

3-Year²

WARRANTY

Supercharged with Cold Air Intake and charge air cooling and electronic boost pressure control

INDUCTION SYSTEM

Unleaded Regular 89 Octane Minimum (R+M/2) or 95 RON 10% Ethanol Maximum

FUEL REQUIREMENT

Sequential Multi-Port Electronic Fuel Injectin (EFI)

FUEL SYSTEM

Electric (Turn-key) with SmartStart

STARTING

NMMA Certified FCW SAE 25W-50

OIL REQUIREMENT

26

MINIMUM CENTERLINE MOUNTING DISTANCE (IN)

Yes

JPO OPTION

HD or SportMaster

GEARCASE

1.75:1

GEAR RATIO

Yes

TIE BAR BRACKET OPTION

668 LBS

DRY WEIGHT

Options

All prices reflect MSRP in U.S. dollars and are applicable in the US only. Dealer sets the actual price. Pricing does not Include dealer preparation fees, taxes, registration fees, that may apply. See participating dealer for details.

400R

1. Choose Your Colors

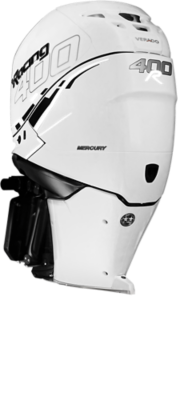

Base Engine Color

Phantom Black

Cold Fusion White

Graphics

Red

Blue

Carbon

Green

Orange

Purple

Yellow

2. Choose A Gear Cases

  1. Sport Master

    The surface piercing Sport Master gearcase delivers race-proven performance for boats capable of speeds exceeding 85 mph, with low water pick-ups and a crescent leading edge to maximize efficiency and speed. Sport Master

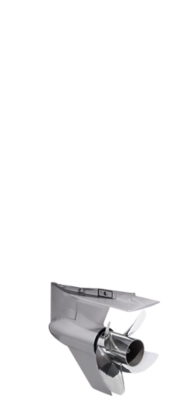

  2. 5.44 HD

    The 5.44'' Offshore HD gearcase was designed for submerged applications in the most demanding offshore environments and features a larger 5.44'' diameter torpedo that provides extra lift for heavier boats. 5.44 HD
  3. Sport Master

    The surface piercing Sport Master gearcase delivers race-proven performance for boats capable of speeds exceeding 85 mph, with low water pick-ups and a crescent leading edge to maximize efficiency and speed. Sport Master
  4. 5.44 HD

    The 5.44'' Offshore HD gearcase was designed for submerged applications in the most demanding offshore environments and features a larger 5.44'' diameter torpedo that provides extra lift for heavier boats. 5.44 HD

3. Choose Your Performance Package

Integrated System

  1. Tie Bar

  2. Tie Bar

    The 400R is available with optional tie bar, not displayed in preview. Ask your dealer for specific model information

4. Choose Your Shaft Length

Length (inches)

  1. 20

  2. 25

  3. 30


5.SUMMARY
